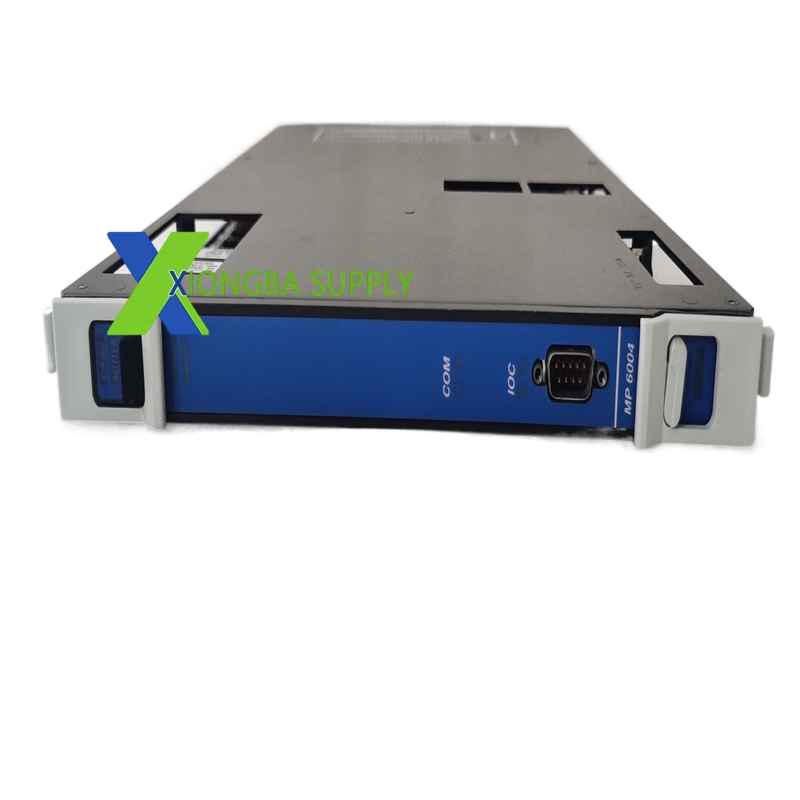

Triconex MP6004 - Redundant 24V DC Power Supply Module for TriStation Safety Controller

Triconex MP6004 – Redundant 24V DC Power Supply Module for TriStation Safety Controller

In stock

Product Introduction:
The Triconex MP6004 is a redundant power supply module that provides 24V DC power to the Triconex TriStation safety controller and its I/O modules. The “MP” stands for Main Power, “6004” identifies the specific 24V DC output configuration. This module accepts 120V AC or 240V AC input from the plant power system and converts it to clean, regulated 24V DC for the safety controller. The module is fully redundant, meaning two power supplies operate in parallel, and if one fails, the other takes over the entire load instantly with zero interruption. This is critical for safety systems, which must never lose power.

Technical Specifications:
Board Type: Redundant Power Supply Module
Input Voltage: 120V AC or 240V AC (auto-ranging)
Output Voltage: 24V DC regulated
Output Current: 10 Amps continuous (20 Amps peak for redundancy)
Redundancy: N+1 redundant (two supplies share the load)
Efficiency: Greater than 85%
Ripple and Noise: Less than 50mV peak-to-peak
Protection: Over-voltage, under-voltage, over-current, short-circuit, and over-temperature protection
Cooling: Dual internal fans with automatic failover
Form Factor: 6U Triconex Eurocard
Operating Temperature: 0 to 60 degrees Celsius
Certifications: UL, CSA, CE, ATEX

Functional Features:
True Redundancy: Both power supplies operate simultaneously, sharing the load equally. If one fails, the other takes 100% of the load without interruption.
Hot Swappable: Can be removed and replaced while the system is running, with the remaining supply carrying the full load.
Clean Power Output: Uses high-frequency switching with extensive filtering to deliver ripple-free 24V DC to sensitive safety electronics.
Fan Redundancy: Dual fans with automatic failover; if one fan fails, the other takes over immediately.
Voltage Supervision: Continuously monitors output voltage and alarms if it drifts outside the acceptable range.
Current Sharing: In redundant mode, both supplies share the load equally, extending the life of both units.
Sequenced Startup: Controls the order in which voltage comes up during system startup, preventing inrush currents.
