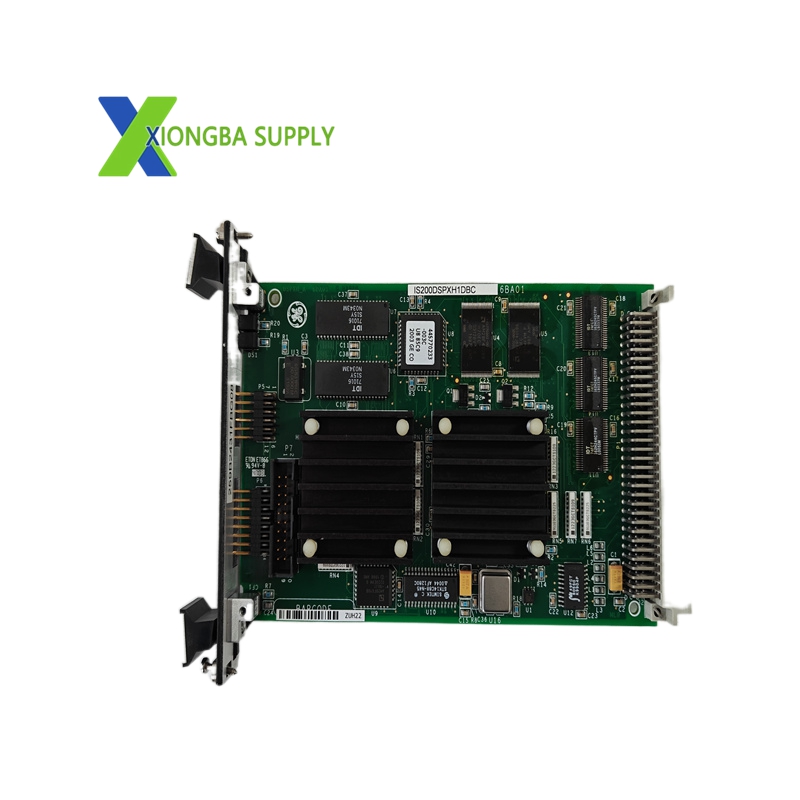

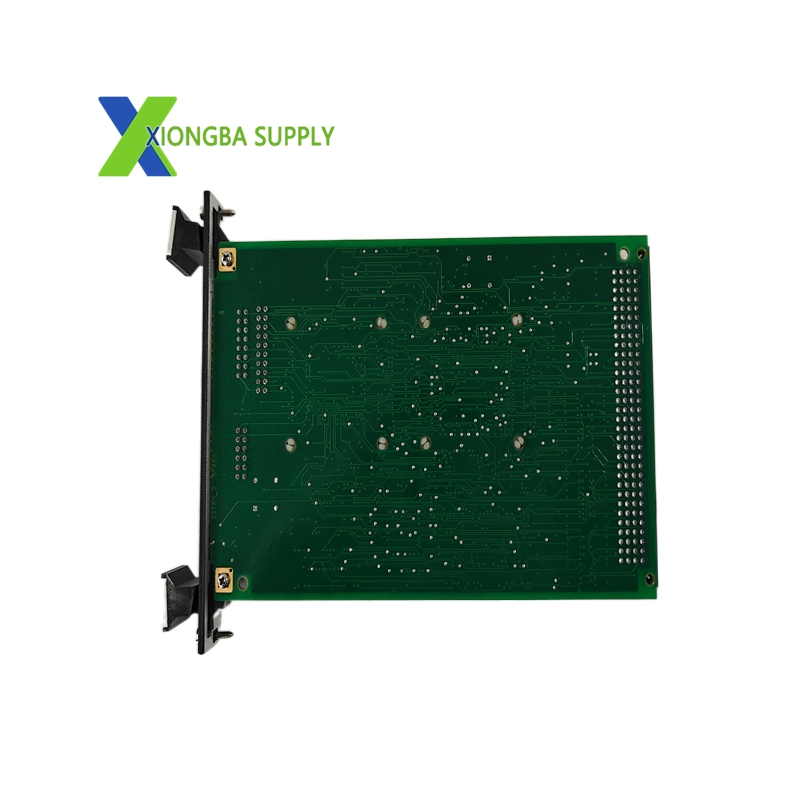

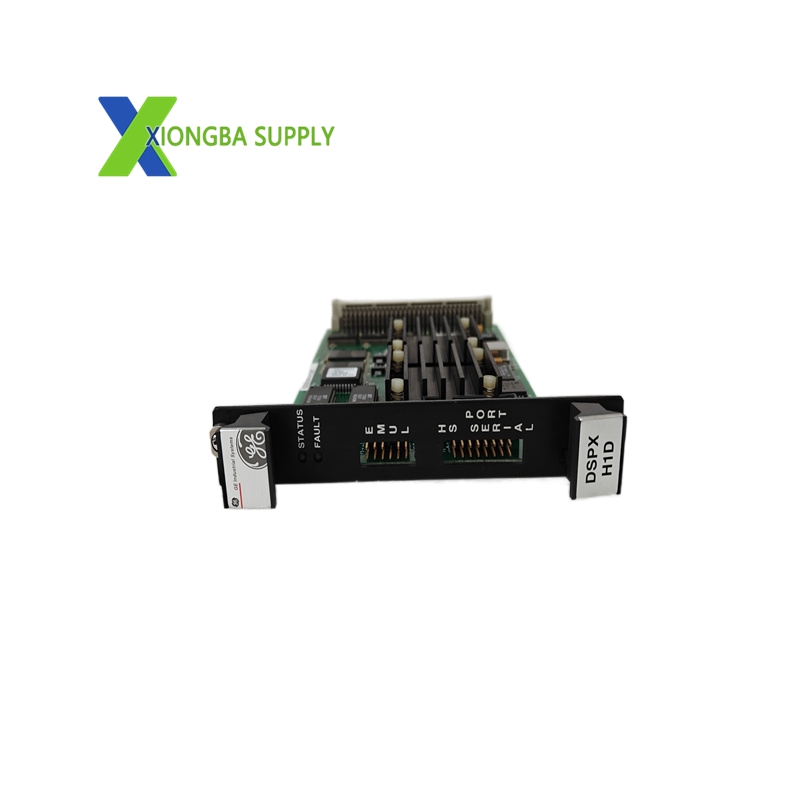

GE Fanuc IS200DSPXH1DBC Digital Signal Processing Module (Mark VIe)

In stock

Product Overview:
The GE Fanuc IS200DSPXH1DBC is a high-speed digital signal processing (DSP) module for the Mark VIe turbine control system. This module offloads complex mathematical computations from the main CPU, enabling faster execution of control algorithms such as vibration analysis, fast-acting governor control, and advanced filter functions. It is specifically designed for applications requiring ultra-fast response times, such as gas turbine fuel control, steam turbine valve management, and generator protection relaying. The “DBC” suffix denotes a specific hardware revision with enhanced processing capability.

Technical Specifications:
Series: GE Mark VIe Control System
Processor: Texas Instruments TMS320C6748 Floating-Point DSP (600 MHz)
RAM: 256 MB DDR2 SDRAM (on-board)
Flash: 128 MB NAND Flash (on-board)
Backplane Bus: GEnet (Mark VIe Backplane)
Communication: Dual-Port RAM shared with CPU + GEnet DMA
Operating Temperature: 0°C to +60°C
Power Consumption: < 10 Watts
MTBF: > 180,000 Hours

Functional Features:
Floating-Point DSP: Executes complex mathematical operations (FFT, FIR/IIR filters, PID with anti-windup) at microsecond speeds
Dual-Port RAM Interface: Shares memory with the main CPU, allowing seamless data exchange without bus contention
Vibration Analysis: Built-in FFT capability for real-time vibration monitoring and bearing diagnostics
Custom Algorithm Support: Users can load custom DSP code (C or assembly) via the Mark VIe Service Tool
Fast I/O Processing: Handles high-speed digital I/O (up to 1 MHz) independently of the main CPU
Deterministic Execution: Guaranteed execution time for critical control loops

Performance Parameters:
FFT Execution Time: < 100 μs (1024-point)
PID Loop Execution: < 50 μs
Digital I/O Update Rate: 1 MHz (1 μs resolution)
Floating-Point Operations: 480 MFLOPS
Data Throughput to CPU: Up to 200 MB/s via Dual-Port RAM

Material Composition:
PCB: 8-Layer FR-4 High-Tg
DSP Chip: Texas Instruments TMS320C6748 (BGA Package)
Memory: Micron DDR2 + Samsung NAND Flash
Connectors: GEnet Backplane Connector + Expansion Header
Enclosure: Aluminum with Thermal Interface Material
