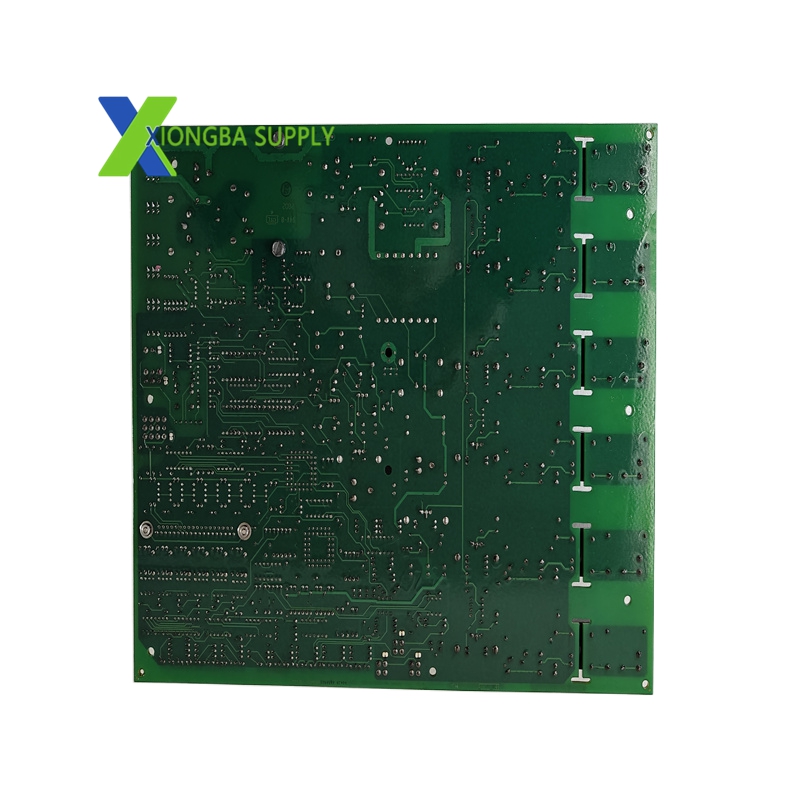

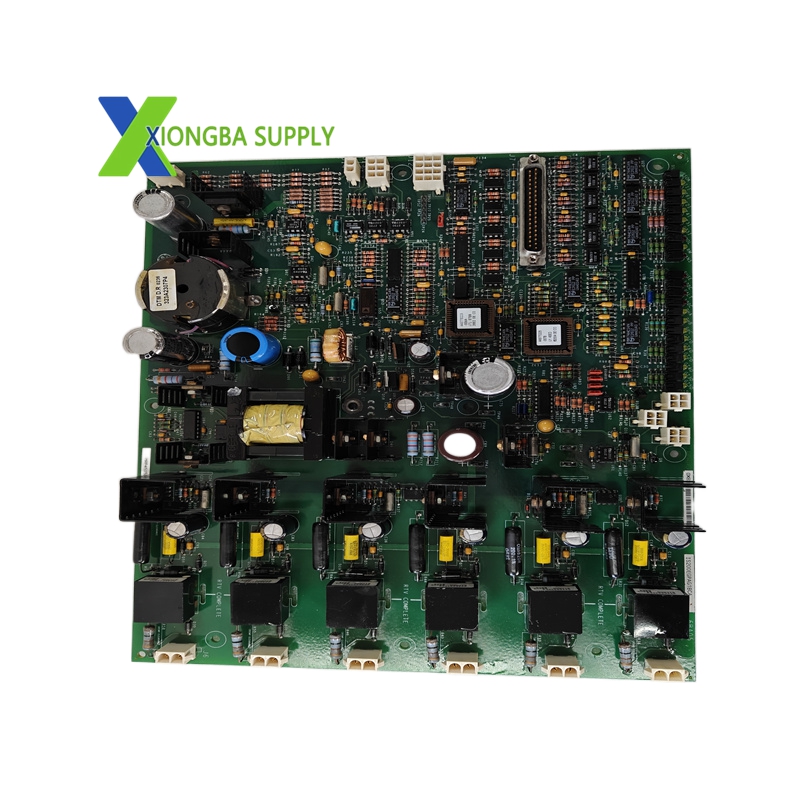

GE Fanuc IS200EGPAG1BCA Gas Turbine Control Package (Mark VIe)

In stock

Product Overview:
The GE Fanuc IS200EGPAG1BCA is a pre-configured application package for the Mark VIe turbine control system, specifically optimized for gas turbine control applications. This is not a hardware module alone but a complete software and hardware configuration bundle that includes the processor (IS200BPPBH2BMD), I/O modules, and the gas turbine control application software pre-loaded and validated. The “GPA” designation stands for Gas Turbine Package A, which is the standard configuration for frame 5, frame 6, frame 7, and frame 9 gas turbines manufactured by GE. The “BCA” suffix indicates the specific application software revision.

Technical Specifications:
Series: GE Mark VIe Gas Turbine Control Package
Included Hardware: IS200BPPBH2BMD (CPU) + IS200AEPCH1BAA (Ethernet) + IS200AEADH1A (Analog Input) + IS200TBAIH1A (Turbine I/O) + IS200VCMOH1A (Valve Control) + IS200EPRTG1A (RTD Input) + IS200TBBIH1A (Turbine Binary I/O)
Control Functions: Speed Control (GOV), Temperature Control (TNR), Fuel Control, Ignition Sequencing, Overspeed Protection, Flame Detection, Exhaust Temperature Monitoring, Vibration Monitoring
Redundancy: Dual Redundant Processor + Redundant I/O (Optional)
Backplane Bus: GEnet
Communication: 2 x Gigabit Ethernet + 2 x Serial (RS-232/RS-485)
Operating Temperature: 0°C to +60°C
MTBF: > 200,000 Hours (System Level)

Functional Features:
Complete Gas Turbine Application: Speed control with droop/isochronous modes, temperature control with TNR limiter, fuel valve management
Ignition Sequencing: Automatic start-up sequence with spark ignition and fuel transfer logic
Protection System: Overspeed trip (103/103A), overtemperature trip, flame failure trip, vibration trip
Valve Control: Individual fuel valve position control with LVDT feedback
Event Recording: Sequential Events Recorder (SER) with 1 ms resolution
Trend Recording: Real-time and historical trending of all key parameters

Performance Parameters:
Speed Control Response: < 100 ms (Load Rejection)
Temperature Control Accuracy: ±2°C (Typical)
Start-Up Time (Cold): < 20 Minutes (to Full Load)
Trip Response Time: < 20 ms (Overspeed)

Material Composition:
All modules use industrial-grade components as specified in individual module descriptions
CompactFlash Cards: Industrial-Grade, Pre-Loaded with Gas Turbine Application

Structural Features:
Form Factor: Full Rack Configuration (typically 10-15 slots)
Chassis: GE Mark VIe Standard Chassis with Redundant Power Supply (IS200PWR)
