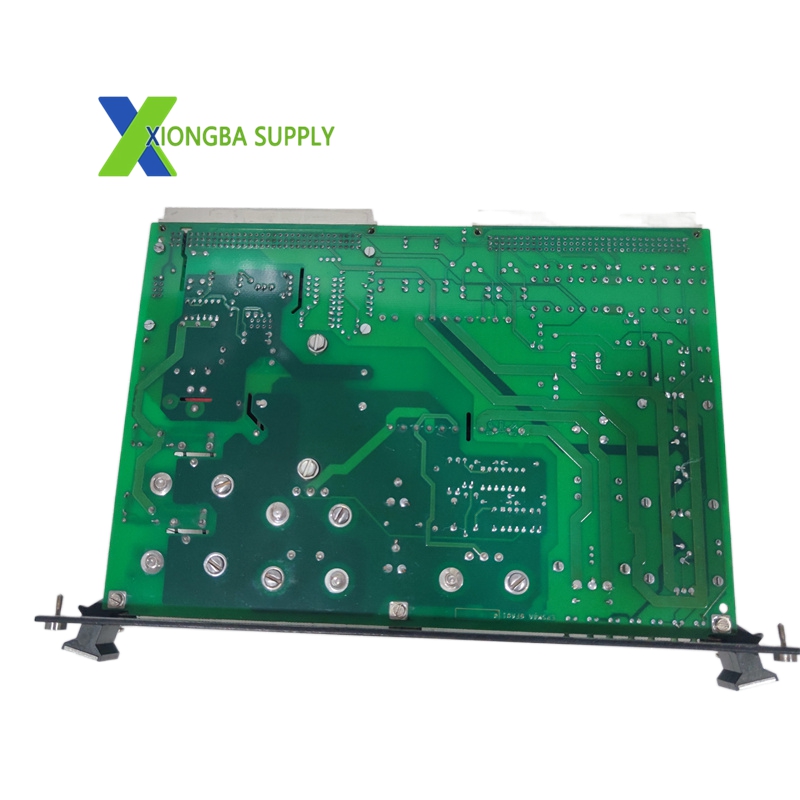

GE Fanuc IS200EPSMG2A Power Supply Module (Mark VIe)

In stock

Product Overview:
The GE Fanuc IS200EPSMG2A is a single-output power supply module for the Mark VIe turbine control system. This module converts the incoming AC mains power (120V or 240V AC) into the stable 24V DC required by all Mark VIe I/O and processor modules. Unlike the redundant PWR724 used in Mark VI systems, the EPSMG2A is a single, non-redundant power supply designed for smaller Mark VIe configurations or non-critical applications where redundancy is not required. It provides clean, well-regulated power with comprehensive protection features.

Technical Specifications:
Series: GE Mark VIe Control System
Input Voltage: 120V AC or 240V AC (Auto-Sensing, 50/60 Hz)
Output Voltage: 24V DC (Nominal)
Output Current: 8 Amps (Maximum)
Output Power: 192 Watts
Redundancy: None (Single Supply)
Backplane Bus: GEnet (Mark VIe Backplane)
Protection: Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), Over-Temperature Protection (OTP)
Operating Temperature: 0°C to +60°C
Efficiency: > 85%
MTBF: > 150,000 Hours

Functional Features:
Auto-Sensing Input: Automatically detects 120V or 240V AC input; no manual jumper changes required
Clean Output: Low ripple and noise (< 50mV p-p) ensures accurate analog measurements
Comprehensive Protection: Four independent protection circuits safeguard the module and the connected I/O
Status Indication: Dual-color LED (Green = Power OK, Red = Fault)
Compact Design: Single-width module saves chassis space

Performance Parameters:
Voltage Regulation: ±1% (0% to 100% Load)
Line Regulation: ±0.5% (120V to 240V Input)
Load Regulation: ±1% (0% to 100% Load)
Ripple and Noise: < 50mV Peak-to-Peak
Turn-On Delay: < 500 ms
Isolation: Input to Output > 1500V AC / 1 minute
