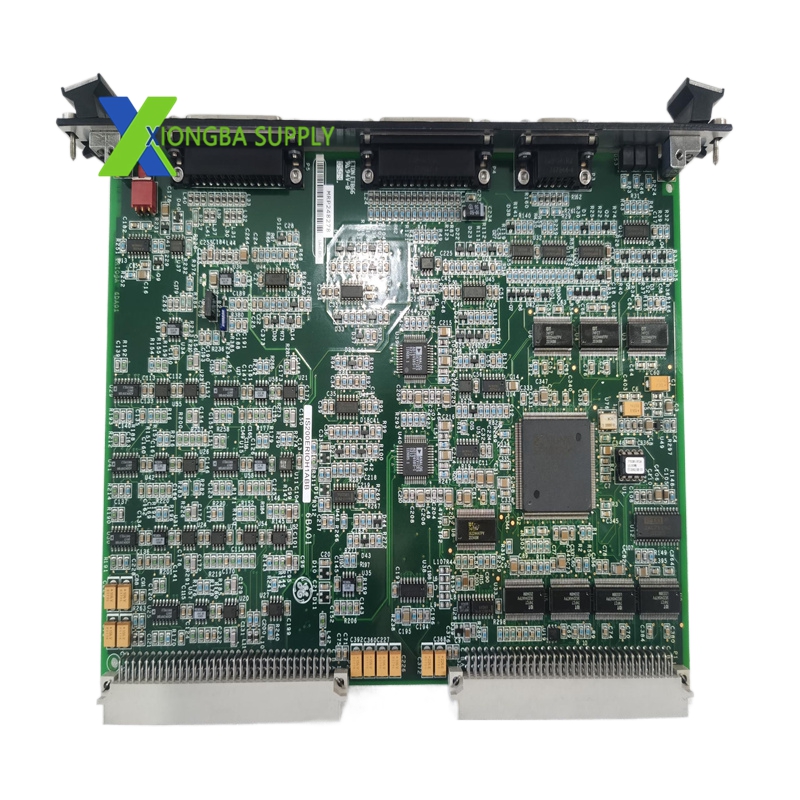

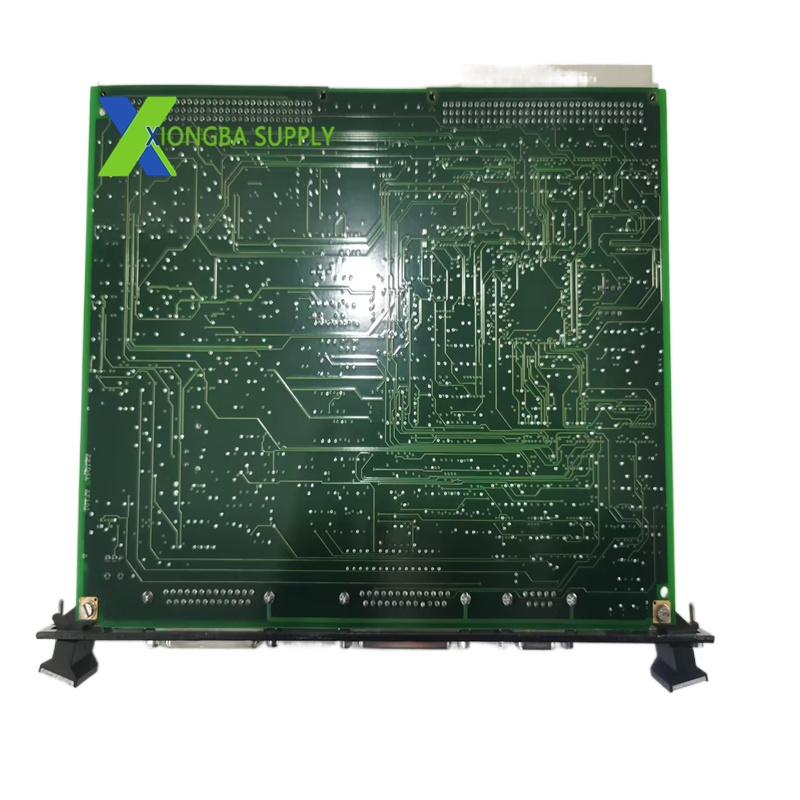

GE Fanuc IS200ERIOH1ABB Remote I/O Interface Module (Mark VIe)

In stock

Product Overview:
The GE Fanuc IS200ERIOH1ABB is a Remote I/O (RIO) interface module for the Mark VIe turbine control system. This module enables the Mark VIe controller to communicate with and control remote I/O racks located up to several hundred meters away from the main control chassis. It uses a high-speed serial communication link (typically RS-485 or fiber optic) to transmit I/O data between the main chassis and the remote racks, significantly reducing the amount of field wiring required. This is essential for large power plants and industrial facilities where sensors and actuators are spread across a wide area.

Technical Specifications:
Series: GE Mark VIe Control System
Communication Interface: RS-485 (Half-Duplex) or Fiber Optic (Single-Mode)
Maximum Distance: 1200 meters (RS-485) / 10 km (Fiber Optic)
Baud Rate: 9600 to 115200 bps (Configurable)
Maximum I/O Points: 256 Digital Inputs + 256 Digital Outputs (per RIO link)
Backplane Bus: GEnet (Mark VIe Backplane)
Supported Remote Racks: IS200TBAIH1A, IS200TBBIH1A, IS200VCMOH1A, IS200TBAIH1B, etc.
Operating Temperature: 0°C to +60°C
Power Consumption: < 5 Watts
MTBF: > 180,000 Hours

Functional Features:
Long-Distance I/O: Extends I/O capability to remote locations without running individual wires back to the control room
Multi-Drop Support: Supports up to 32 remote racks on a single RIO link
Hot-Swappable: RIO modules can be replaced without shutting down the remote I/O
Diagnostic Capability: Reports communication errors, remote rack status, and I/O module health to the main CPU
Automatic Rescan: Upon power-up or communication recovery, automatically rescans all remote I/O racks
Time-Stamped Data: All I/O data is time-stamped for accurate event sequencing

Performance Parameters:
Communication Latency: < 10 ms (RS-485 at 115200 bps)
Data Refresh Rate: 10 ms to 100 ms (Configurable per rack)
Error Detection: CRC-16 Error Checking on Every Frame
Isolation: RIO Port to Backplane > 1500V DC

Material Composition:
PCB: 6-Layer FR-4
Communication Transceiver: MAX3485 (RS-485) or Industrial Fiber Optic Transceiver (for fiber version)
Isolation: Digital Isolators (Si86xx Series) + Opto-Isolators
Connectors: DB9 (RS-485) or SC/ST Fiber Optic Connector
Enclosure: Aluminum with EMI Gasket
