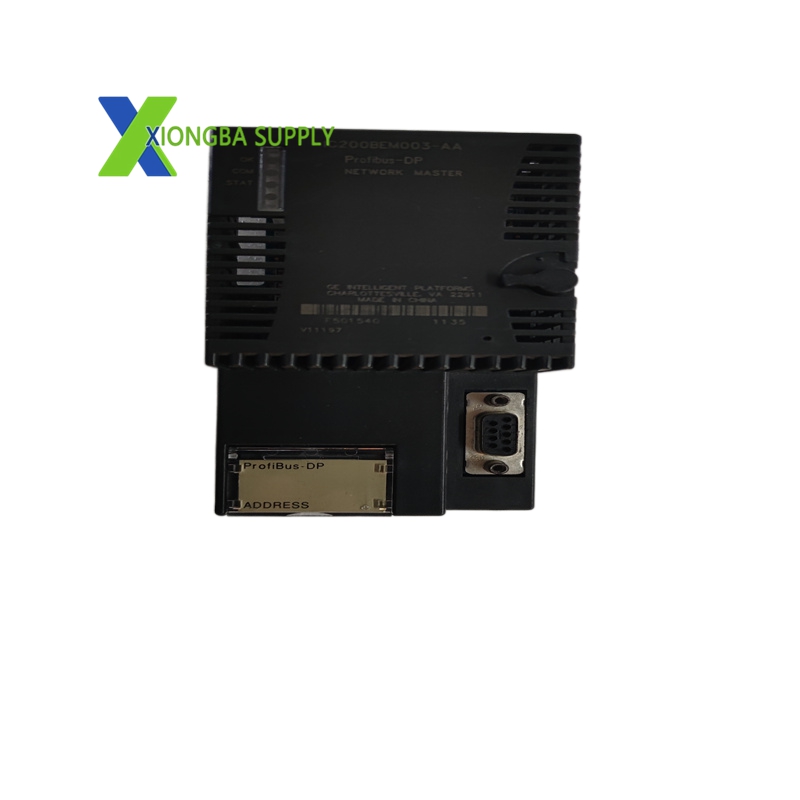

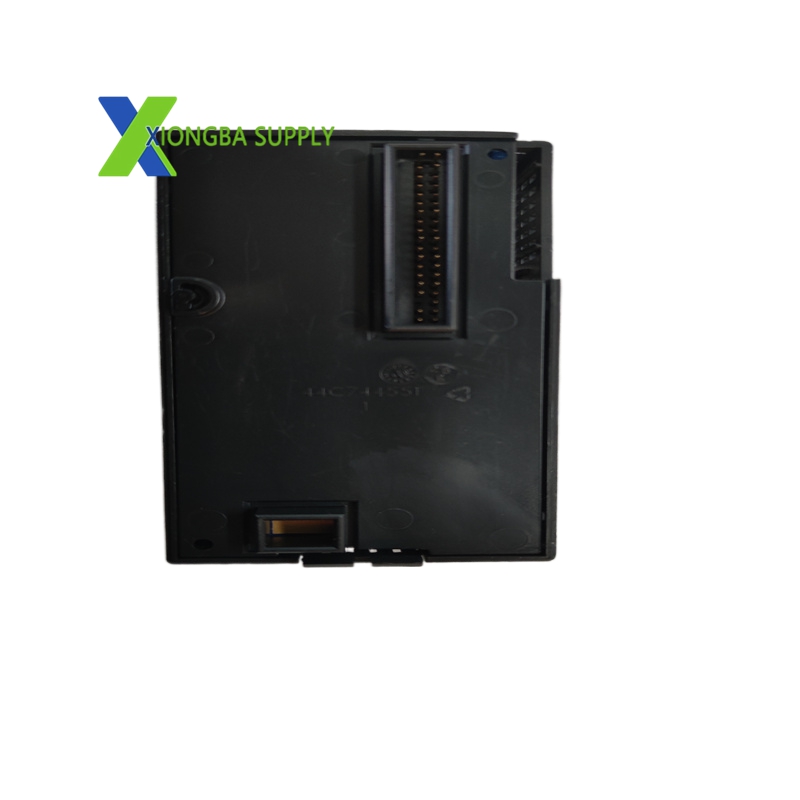

Technical Specifications
- Manufacturer: GE Fanuc (General Electric)
- Model: IC200BEM003
- Series: VersaMax PLC System
- Module Type: PROFIBUS-DP V1 Master Module
- Supported Controllers: VersaMax CPU005, CPUE05, PROFINET Scanner (PNS)
- Protocol: PROFIBUS-DP V1 (IEC 61158)
- Data Rate: 9.6 kbps to 12 Mbps (standard PROFIBUS baud rates)
- Max Slave Devices: 125 PROFIBUS-DP slaves
- Max Data Capacity (VersaMax CPU): 3584 input bytes; 3584 output bytes
- Max Data Capacity (PNS): 1440 input bytes; 1440 output bytes
- Per-Slave Data Size: 244 input bytes; 244 output bytes
- Connector: 9-pin D-sub (PROFIBUS interface)
- Cable Type: Shielded twisted-pair (STP)
- Backplane Power Consumption: 450mA @ 5VDC
- Isolation:
- 250VAC continuous (network-to-frame ground)
- 1500VAC for 1 minute (PROFIBUS-to-backplane)
- Dimensions (W×H×D): 105mm × 100mm × 36mm
- Weight: 0.1kg (0.22lbs)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 5%–95% (non-condensing)
- Certifications: CE, UL, CSA
- Mounting: DIN rail or VersaMax Communications Carrier
Key Features
- PROFIBUS-DP V1 Master Functionality: Acts as a master to control and monitor up to 125 slave devices, supporting cyclic data exchange and acyclic DP-V1 services (read/write/alarm messages).
- High-Bandwidth Data Handling: Processes up to 3584 bytes of input and output data with VersaMax CPUs, enabling integration of complex systems with large I/O data requirements.
- Comprehensive Baud Rate Support: Operates at all standard PROFIBUS data rates from 9.6kbps to 12Mbps, adapting to diverse network topologies and distance requirements.
- Sync/Freeze Mode Support: Enables synchronized data sampling and output freezing for coordinated control of multiple slaves in motion control or process synchronization applications.
- Robust Electrical Isolation: Provides 1500VAC isolation between the PROFIBUS network and PLC backplane, protecting the control system from electrical noise, voltage spikes, and ground loops.
- LED Diagnostic Indicators: Front-panel LEDs display module status, network activity, and fault conditions for real-time monitoring and quick troubleshooting.
- Firmware Updates via Host Controller: Receives firmware upgrades indirectly from the connected VersaMax CPU or PNS using the WinLoader software utility, eliminating the need for direct module programming.
- Compact & Hot-Swappable Design: Standard VersaMax form factor for easy integration into control cabinets; supports hot swapping for replacement without system shutdown.
