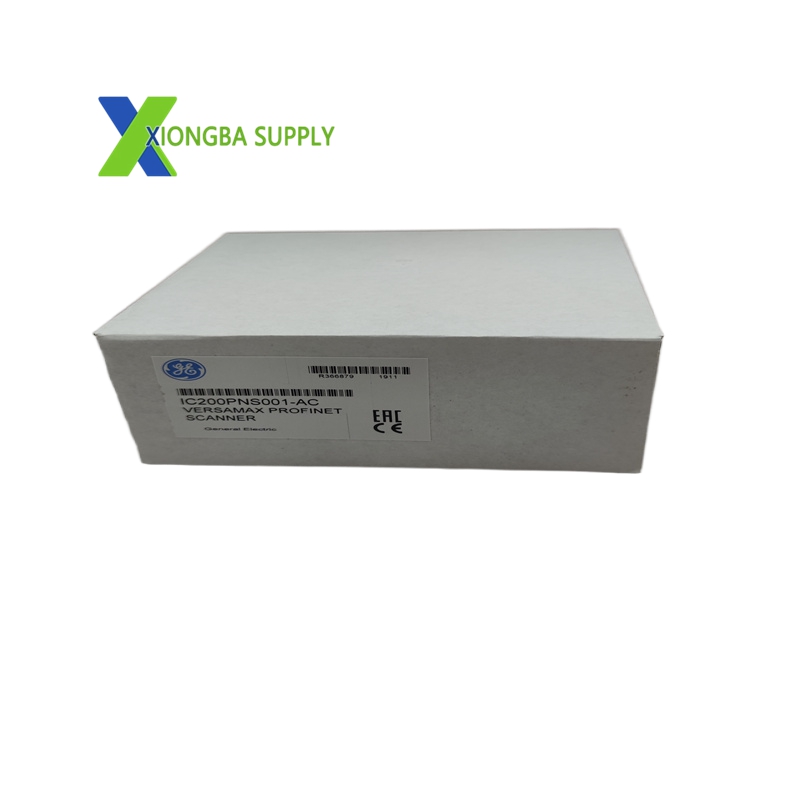

GE IC200PNS001 – VersaMax PROFINET Remote I/O Network Interface Unit(Scanner Module)

In stock

Product Introduction: The IC200PNS001, developed by GE Fanuc and now under Emerson Automation, is a high-performance PROFINET communication module in the VersaMax I/O series. It functions as a remote I/O scanner, enabling seamless integration of distributed VersaMax I/O modules into PROFINET-based industrial Ethernet networks. Serving as a critical link between PACSystems controllers (RX3i, RX7i, Series 90-70) and field I/O devices, it supports high-speed data exchange, flexible network topologies, and robust diagnostic capabilities for large-scale industrial automation systems.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Fanuc / GE Intelligent Platforms)
Model: IC200PNS001
Series: VersaMax PLC System
Module Type: PROFINET IO-Device (Slave) Network Interface Unit (NIU)
Supported Protocol: PROFINET Version 2.2, Class A I/O Device
Compatible Controllers: PACSystems RX3i (firmware v7.0+), RX7i, Series 90-70
Network Ports: 2 × RJ45 connectors with embedded Ethernet switch
Transmission Speed: 10/100 Mbps (auto-negotiation)
Max Cable Distance: 100 meters per segment (CAT5e/CAT6 cable)
I/O Data Capacity:
- Discrete I/O: 2880 bytes total (1440 bytes input / 1440 bytes output)
- Analog I/O: 2880 bytes total (1440 bytes input / 1440 bytes output)
Max I/O Modules: 8 VersaMax I/O modules per node (non-expandable)
Update Rate: Configurable 1 ms to 512 ms
Diagnostic Bits: 32 input status bits, 32 output control bits
Power Supply:
- Backplane: 5VDC at 0.6A (3W typical power consumption)
- Field: 20.4–28.8VDC (external 24VDC power supply)
Dimensions (W×H×D): 134mm × 132mm × 50mm
Weight: 0.35kg (0.77lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 10%–90% (non-condensing)
Certifications: CE, UL, CSA, RoHS compliant
Mounting: DIN rail or VersaMax I/O carrier

Key Features

PROFINET V2.2 Class A Compliance: Ensures interoperability with all standard PROFINET controllers and devices.
Dual RJ45 Ports with Embedded Switch: Supports linear, daisy-chain, and star topologies without external switches, reducing cabling costs.
High-Density I/O Handling: Manages up to 8 local VersaMax I/O modules with 2880 bytes each of discrete and analog data, suitable for medium-to-large I/O nodes.
Auto-Negotiation & Adaptive Speed: Automatically detects and configures 10/100 Mbps speeds for seamless network integration.
Flexible Update Rate: Configurable from 1 ms (high-speed control) to 512 ms (non-critical monitoring) to optimize network traffic.
Comprehensive Diagnostics: 32 status/control bits enable real-time monitoring of network health, module status, and I/O integrity.
Hot-Swappable: Allows module replacement without shutting down the entire system, minimizing downtime.
Robust Industrial Design: Wide temperature/humidity tolerance and compliance with industrial safety standards for deployment in harsh environments.
