GE IC200PWB001 – VersaMax Power Supply Booster Carrier

In stock

Product Introduction:

The IC200PWB001, designed by GE Fanuc (now Emerson Automation), is a dedicated power supply booster carrier in the VersaMax modular I/O system. It serves as an expansion base that mounts an additional external power supply, distributing stable DC power to all I/O modules located to its right on the DIN rail—until the next booster carrier or the end of the rack. It resolves power budget limitations in large VersaMax configurations, ensuring sufficient and reliable power for high-density I/O setups. The unit works in tandem with the CPU/NIU’s integrated power supply, sharing the external power load and enhancing system stability in industrial environments.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200PWB001
Series: VersaMax PLC & I/O System
Product Type: Power Supply Booster Carrier (No integrated power supply; requires external DC power)
Power Distribution: Supplies power to all I/O modules to the right (up to next booster or rack end)
External Power Input: 18–30VDC (standard industrial DC power)
Backplane Power Support: 5VDC and 3.3VDC distribution for I/O modules
Maximum Load Capacity: Supports high-current I/O modules (e.g., analog, high-density digital)

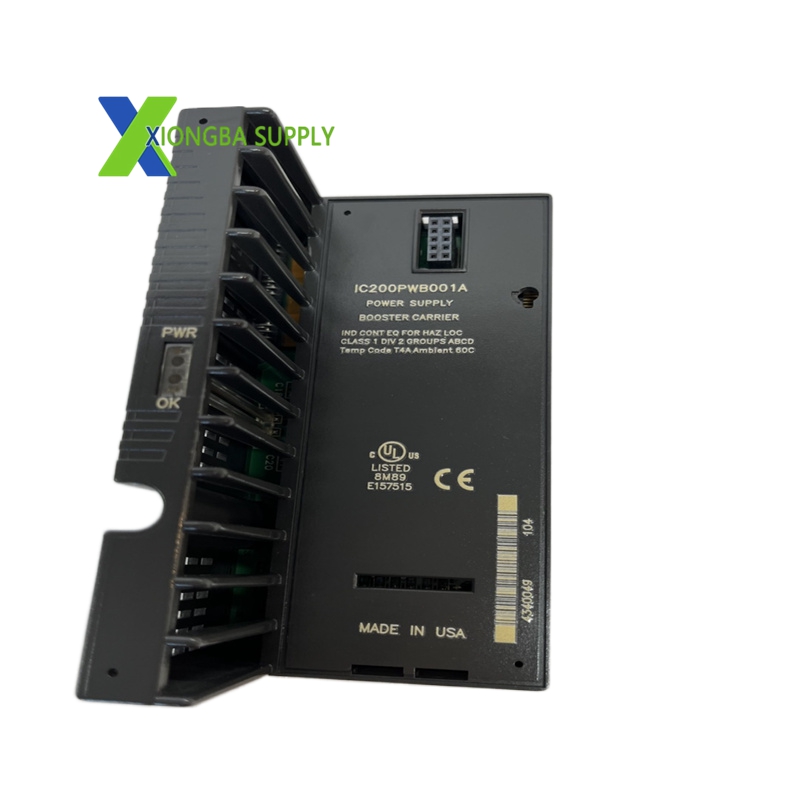

LED Indicators:
- PWR: Illuminates when the attached external booster power supply is active and functional
- OK: Illuminates when communication and power synchronization between CPU/NIU and the booster supply are normal
Dimensions (W×H×D): 66.8mm × 133.4mm × 70mm (excluding DIN rail latch)
Weight: 0.30kg (0.66lbs)
Mounting: Standard DIN rail (35mm) or VersaMax I/O carrier rack
Operating Temperature: -20°C to +60°C (-4°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Protection Class: IP20 (protects against solid objects >12mm)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Lifecycle Status: Active (supported by Emerson)
Warranty: 12 months (factory original)

Key Features

Power Budget Expansion: Eliminates power limitations of the CPU/NIU’s internal supply, supporting large-scale I/O racks with 16+ modules.
Modular & Hot-Swappable: Snaps onto DIN rail seamlessly with other VersaMax carriers; supports hot swapping for replacement without system shutdown.
Dual LED Diagnostics: Clear visual status for power supply health and system communication, simplifying on-site troubleshooting.
Load Sharing: Shares external DC power with the CPU/NIU, reducing backplane current stress and extending component lifespan.
Wide Environmental Tolerance: Operates reliably in extreme temperatures and humidity, suitable for harsh industrial workshops and outdoor control cabinets.
Compact Design: Standard VersaMax form factor saves cabinet space, enabling high-density I/O layout in limited-area control rooms.
