GE IC200PWB001A – VersaMax Power Supply Booster Carrier

In stock

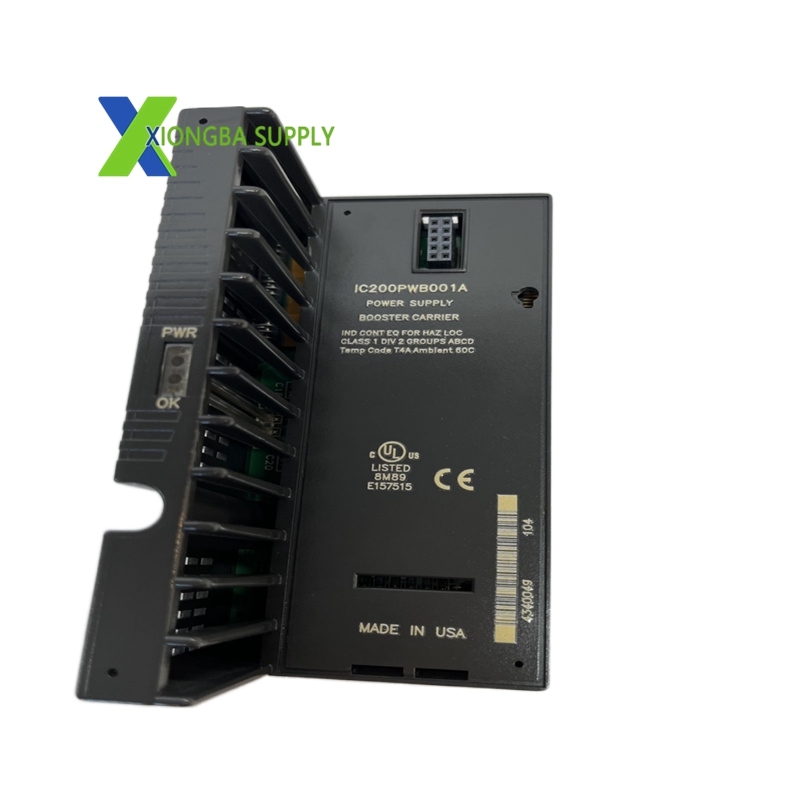

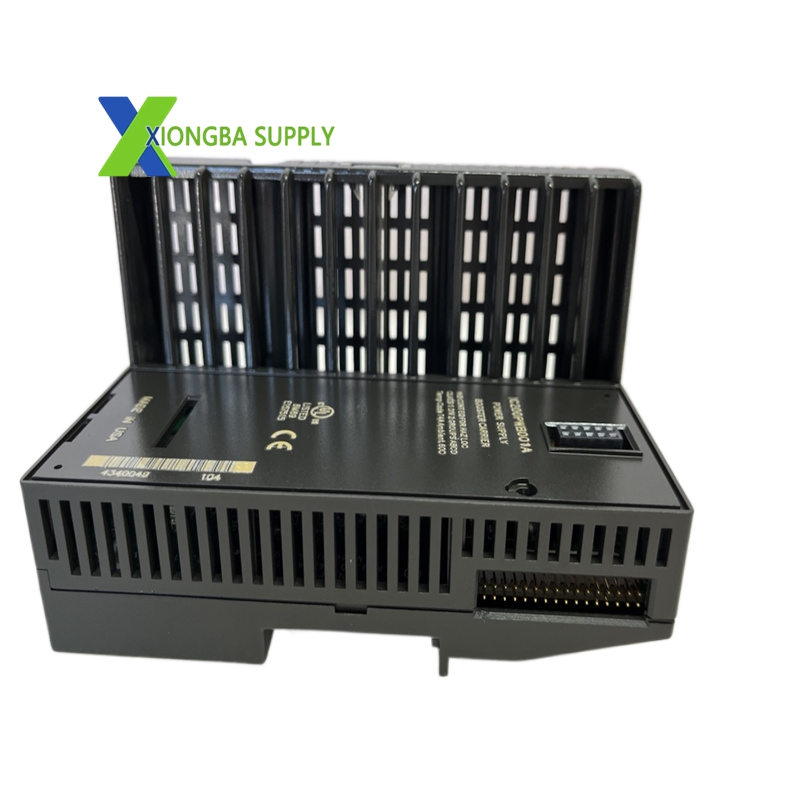

Product Introduction: The IC200PWB001A, manufactured by General Electric (GE) under the Emerson Automation portfolio, is a critical power supply booster carrier in the VersaMax I/O system. It is designed to host an additional power supply module, extending power distribution to downstream I/O modules in the VersaMax PLC rack. This carrier addresses power limitations in large-scale systems, ensuring stable and sufficient power delivery to all connected modules, thus enhancing system reliability and scalability in complex industrial automation environments.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200PWB001A
Series: VersaMax PLC System
Module Type: Power Supply Booster Carrier
Compatibility: Supports VersaMax power supply modules; compatible with all IC200 series I/O modules
Input Voltage: 24VDC nominal (external field power)
Power Dissipation: 2.5W maximum
Terminals: 10 spring-clamp type terminals for secure wiring
Isolation: 1500VAC (1 minute) channel-to-logic; 250VAC continuous
LED Indicators: 2 status LEDs (PWR: Booster supply status; OK: CPU/NIU and booster supply operational status)
Mounting: 35mm DIN rail (standard industrial mounting)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.14kg (0.31lbs)
Operating Temperature: -20°C to +60°C (-4°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non-condensing)
Protection Class: IP20 (protects against solid objects >12mm)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
MTBF (Mean Time Between Failures): 50,000 hours

Key Features

Power Extension Capability: Hosts an additional power supply to deliver power to all I/O modules to its right (until the next booster carrier), eliminating power bottlenecks in large racks.
Dual LED Diagnostics: Real-time status monitoring via PWR and OK LEDs for quick fault identification and maintenance.
Spring-Clamp Terminals: Ensures vibration-resistant, tool-less wiring for fast installation and reduced downtime.
Robust Electrical Isolation: 1500VAC isolation protects the PLC backplane from field-side electrical noise, voltage spikes, and ground loops.
Hot-Swappable Design: Enables carrier or power supply replacement without shutting down the entire system, maximizing operational uptime.
Compact & Standardized Form Factor: Matches VersaMax module dimensions for seamless integration into existing cabinets and rack configurations.
Wide Environmental Tolerance: Operates reliably in extreme temperatures and humidity, suitable for harsh industrial settings.
Distributed Power Architecture: Shares external power between the CPU/NIU power supply and the booster supply, optimizing power distribution efficiency.
