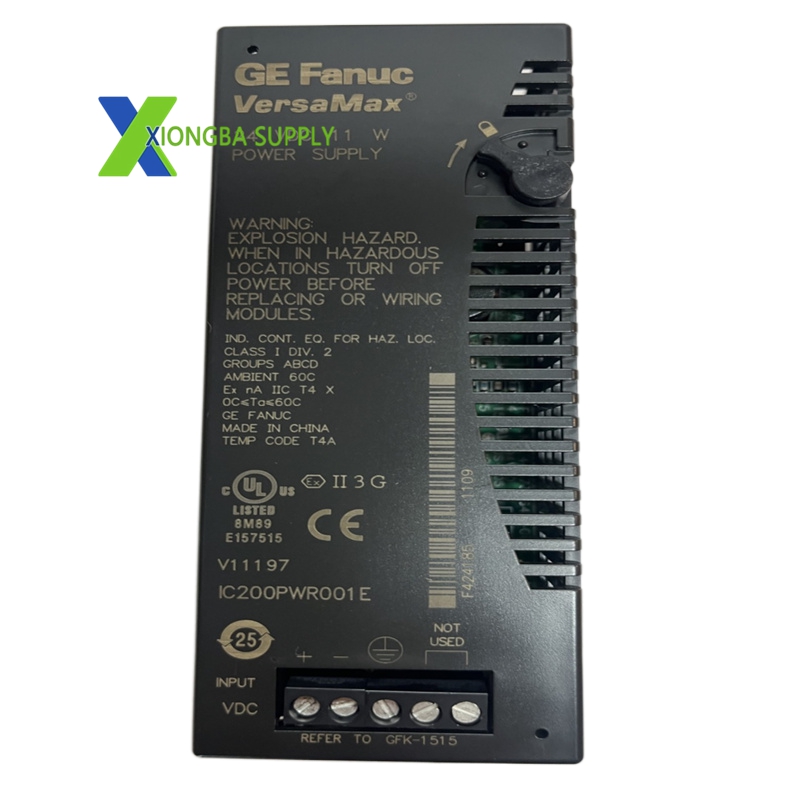

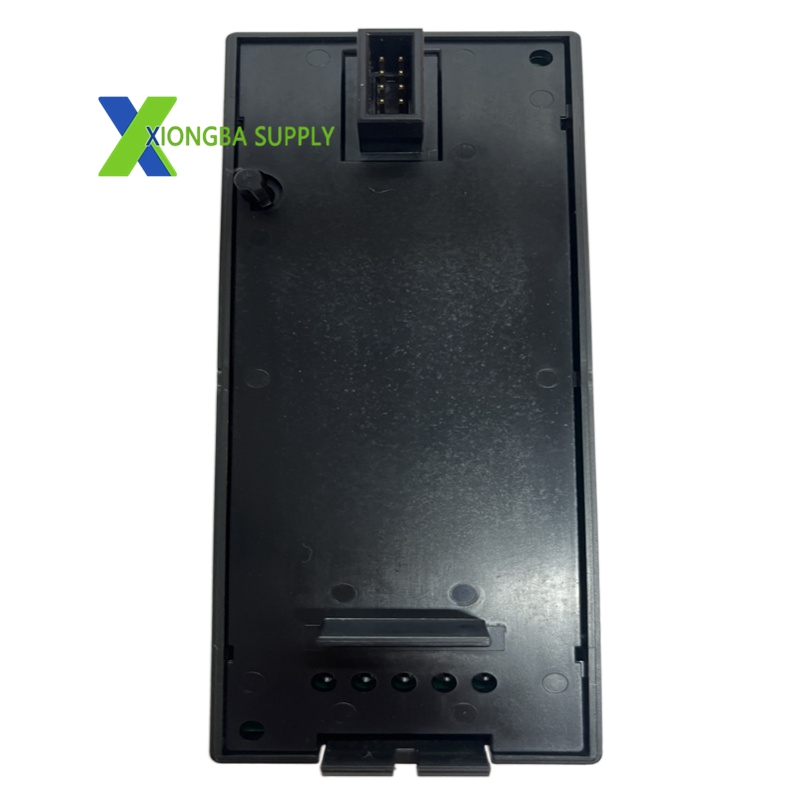

GE IC200PWR001G – VersaMax 24VDC Input Backplane Power Supply Module

In stock

Product Introduction: The IC200PWR001G, manufactured by General Electric (GE) under the Emerson Automation portfolio, is a compact and reliable backplane power supply module in the VersaMax I/O series. It is designed to convert a 24VDC field input into regulated 5VDC and 3.3VDC power for VersaMax CPU, NIU, and I/O modules via the backplane bus. It functions as the main power supply for a local I/O station when mounted on a CPU or NIU, or as a supplementary power supply for expanded I/O systems when installed on a booster carrier. Engineered for industrial durability, it ensures stable power delivery for automation systems in harsh environments.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200PWR001G
Series: VersaMax PLC System
Module Type: Backplane Power Supply Module
Input Voltage: 18–30VDC (24VDC nominal)
Input Power: 11W maximum
Output Voltages: 5VDC, 3.3VDC (regulated)
Total Output Current: 1.5A maximum (combined 5V + 3.3V)
3.3V Output Current: 0.25A maximum
5V Output Current: 1.5A minus 3.3V current used, maximum
Holdup Time: 10ms minimum (output hold after input power loss)
Inrush Current: 20A @ 24VDC; 25A @ 30VDC
Protection Features: Short circuit, overload, reverse polarity
Dimensions (W×H×D): 49mm × 133.4mm × 39mm (1.93in × 5.25in × 1.54in)
Weight: 0.42kg (0.93lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA, Class I Div 2, Temp Code T4A
Protection Class: IP20
Mounting: Snaps onto VersaMax CPU, NIU, or IC200CHS003 Power Supply Booster Carrier

Key Features

Dual Output Regulation: Provides stable 5VDC and 3.3VDC outputs to meet the power requirements of digital logic and I/O circuits.
Flexible System Role: Operates as the primary power supply for small to medium-sized VersaMax stations or as a secondary supply for large I/O configurations.
Comprehensive Protection: Built-in short circuit, overload, and reverse polarity protection safeguards the module and connected devices from electrical damage.
Extended Holdup Time: 10ms holdup time ensures uninterrupted operation during brief input power fluctuations.
LED Diagnostic Indicators:
- INPUT OK: Lights when 24VDC input power is within the valid range.
- OUTPUT OK: Lights when 5VDC and 3.3VDC outputs are stable.
Compact & Tool-Less Installation: Standard VersaMax form factor saves cabinet space; snap-on design enables quick mounting without tools.
Wide Environmental Tolerance: Operates reliably across a broad temperature range and in high-humidity conditions, suitable for industrial environments.
