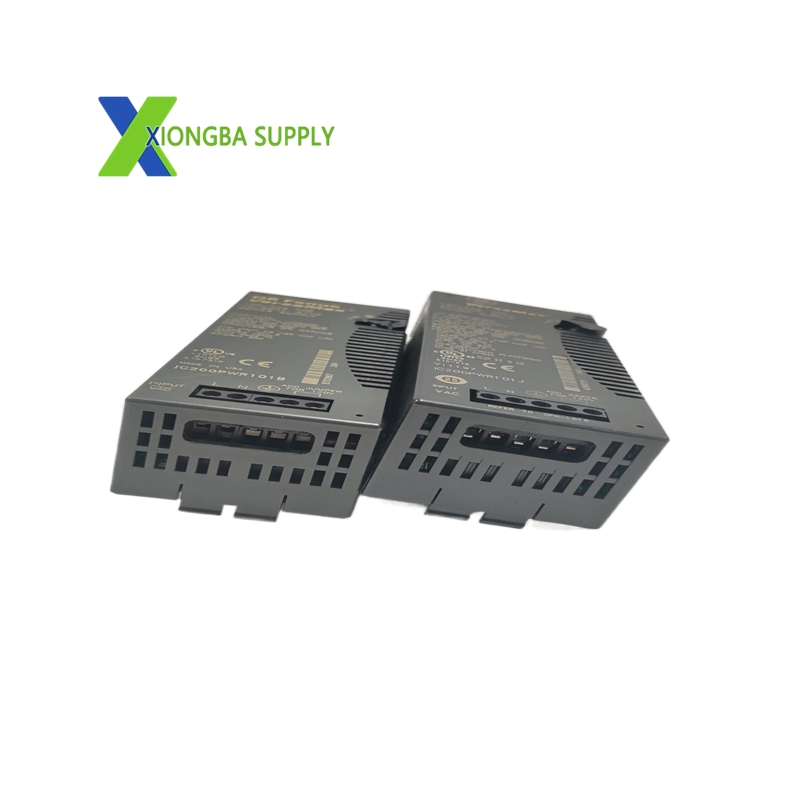

GE IC200PWR101E – VersaMax AC-to-DC Power Supply Module

In stock

Product Introduction: The IC200PWR101E, manufactured by General Electric (GE Fanuc), is a compact, high‑efficiency power supply module from the VersaMax I/O series. It converts universal AC input into regulated +5VDC and +3.3VDC outputs to power the VersaMax PLC backplane, CPU, and I/O modules. Designed for industrial automation environments, it provides stable, low‑noise power with comprehensive protection and diagnostic features, serving as the primary or auxiliary power source for VersaMax systems.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200PWR101E
Series: VersaMax PLC System
Module Type: AC‑to‑DC Backplane Power Supply
Input Voltage: 85–264VAC (universal, auto‑range)
Input Frequency: 47–63Hz
Input Power: 27VA maximum
Output Voltages: +5VDC (logic), +3.3VDC (logic)
Output Current:
- +5VDC: 1.5A maximum (minus 3.3VDC current)
- +3.3VDC: 0.25A maximum
Total Output Power: 7.5W maximum
Efficiency: >85% typical at full load
Holdup Time: 20ms minimum (maintains output during brief AC interruptions)
Protection Features: Overcurrent, overvoltage, short‑circuit, and thermal protection
Isolation: Input‑to‑output reinforced isolation (250VAC continuous)
LED Indicators:
- PWR OK: Green, lights when outputs are stable
- FLT: Red, lights on fault (overload, overvoltage, overtemperature)
Dimensions (W×H×D): 30mm × 120mm × 95mm
Weight: 0.55kg (1.21lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Mounting: DIN rail or VersaMax I/O carrier (Slot 0, leftmost position)
Cooling: Natural convection (no fan required)

Key Features

Universal AC Input: 85–264VAC auto‑range supports global industrial power grids without jumper changes.
Dual Regulated Outputs: Provides +5VDC and +3.3VDC to power VersaMax CPU, backplane, and I/O modules.
High Efficiency & Low Noise: >85% efficiency reduces heat generation; low ripple/noise ensures stable logic operation.
Comprehensive Protection: Overcurrent, overvoltage, short‑circuit, and thermal shutdown safeguard the module and connected devices.
Diagnostic LEDs: Clear PWR OK and FLT indicators enable real‑time status monitoring and fault identification.
Compact & Rugged: Slim DIN‑rail form factor; industrial‑grade components withstand vibration, temperature fluctuations, and electrical noise.
Hot‑Swappable: Can be replaced without shutting down the entire system (when used in redundant configurations).
Wide Environmental Tolerance: Operates reliably in 0°C to +60°C and non‑condensing humidity up to 95%.
