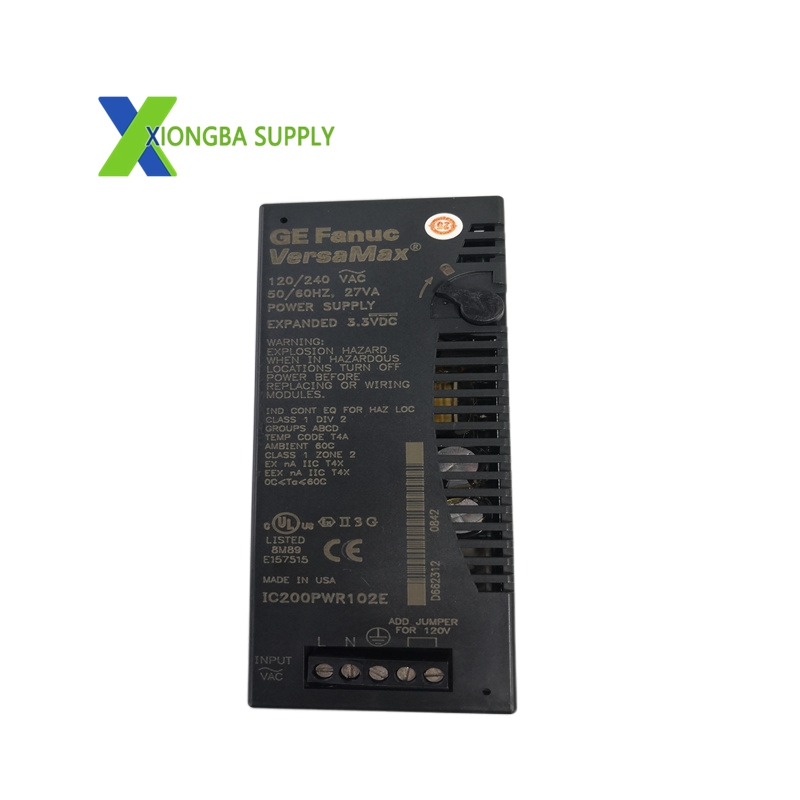

GE IC200PWR102 – VersaMax Expanded AC-to-DC Power Supply Module

In stock

Product Introduction: The IC200PWR102, designed by General Electric (GE Fanuc, now Emerson Automation), is a high-efficiency, compact power supply module in the VersaMax PLC series. It converts 120/240 VAC line power into regulated 5 VDC and 3.3 VDC outputs, delivering stable power to VersaMax CPU, NIU, and I/O modules. Serving as an expanded power solution, it supplements the base power supply in large I/O systems, ensuring reliable and continuous operation of industrial control panels.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200PWR102
Series: VersaMax PLC System
Module Type: Expanded AC-to-DC Power Supply
Input Voltage (Nominal): 120 VAC / 240 VAC (jumper-selectable)
Input Voltage Range:
- Jumper installed: 85–132 VAC (120 VAC nominal)
- Jumper removed: 176–264 VAC (240 VAC nominal)
Input Frequency: 47–63 Hz
Input Power: 27 VA
Output Voltages: 5 VDC, 3.3 VDC
Output Current (Max):
- 5 VDC: 1.5 A
- 3.3 VDC: 1.0 A
- Total Combined Current: 1.5 A maximum
Holdup Time: 20 ms (minimum, at full load)
Efficiency: ≥75%
Protection Features: Short-circuit, overload, overvoltage, and overtemperature protection
Dimensions (H×W×D): 49 mm × 133.4 mm × 39 mm
Weight: 0.30 kg (0.66 lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, cULus, RoHS
Protection Class: IP20
Mounting: DIN rail or VersaMax I/O carrier

Key Features

Dual Regulated DC Outputs: Provides both 5 VDC and 3.3 VDC to power a full range of VersaMax CPUs, communication modules, and digital/analog I/O.
Wide Universal AC Input: Accepts global 120/240 VAC mains with simple jumper selection for voltage range.
High Efficiency & Reliability: ≥75% efficiency reduces heat generation; built-in protection ensures safe operation under fault conditions.
LED Diagnostic Indicator: Green PWR LED illuminates when output power is stable and normal.
Compact & Space-Saving: Slim DIN-rail form factor minimizes cabinet space, ideal for high-density I/O systems.
Hot-Swappable: Can be installed or replaced while the VersaMax backplane is energized, supporting online maintenance.
Expanded System Support: Delivers extra power for large configurations with many I/O modules, relieving the load on the base CPU power supply.
