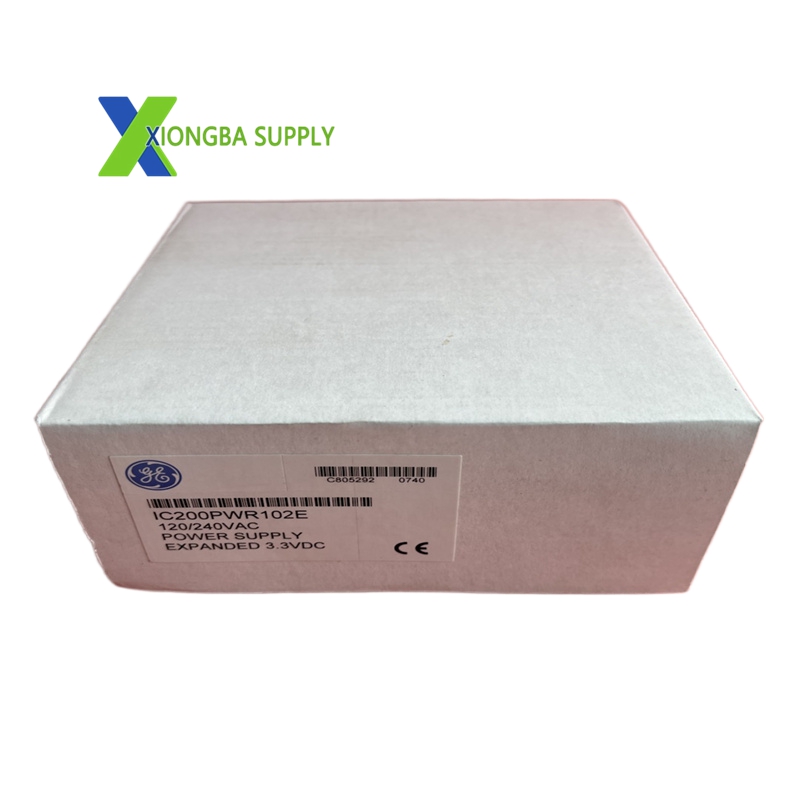

GE IC200PWR102E – VersaMax Expanded AC Power Supply Module

In stock

Product Introduction: The IC200PWR102E, manufactured by General Electric (GE Fanuc / Emerson Automation), is a high-efficiency expanded power supply module within the VersaMax PLC system. Designed to deliver stable DC power to the VersaMax backplane, it powers CPUs, I/O modules, and network interface units. The unit accepts a wide-range AC input and provides isolated 5VDC and 3.3VDC outputs, serving as either a primary power supply or a supplementary source on booster carriers for systems with high module counts.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200PWR102E
Series: VersaMax PLC System
Module Type: Expanded AC-DC Power Supply
Input Voltage (AC):
- 85–132 VAC (nominal 120 VAC, jumper installed)
- 176–264 VAC (nominal 240 VAC, jumper removed)
Input Frequency: 47–63 Hz
Input Power: 27 VA maximum
Hold-Up Time: 20 ms (maintains output during brief power interruptions)
Output Voltages: 5 VDC, 3.3 VDC (isolated from input)
Output Current:
- Total: 1.5 A maximum
- 3.3 VDC: 1.0 A maximum
- 5 VDC: Up to 1.5 A (minus 3.3 VDC load)
Efficiency: ≥85% at full load
Voltage Regulation: ±3% of nominal output
Protection Features: Short-circuit, overload, over-temperature, under-voltage lockout
Isolation: 250 VAC continuous (input-to-output)
Dimensions (W×H×D): 51 mm × 127 mm × 51 mm
Weight: 0.20 kg (0.44 lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Mounting: DIN rail or VersaMax I/O carrier

Key Features

Dual-Range AC Input: Supports global 120 VAC and 240 VAC grids via configurable jumper, enabling worldwide deployment.
High-Efficiency Conversion: Reduces energy loss and heat generation for reliable long-term operation.
Backplane Power Expansion: Delivers supplementary power for large VersaMax systems with many I/O modules, preventing overloading of the CPU’s integrated supply.
Robust Protection Mechanisms: Shuts down safely during short circuits, overloads, or over-temperature events to safeguard connected PLC hardware.
LED Diagnostic Indicators:
- AC OK: Illuminates when valid AC input is present.
- DC OK: Lights when 5VDC/3.3VDC outputs are stable.
Compact & Hot-Swappable: Standard VersaMax form factor; supports hot swapping for replacement without system shutdown.
Wide Environmental Tolerance: Operates reliably in extreme temperatures and humidity for harsh industrial environments.
