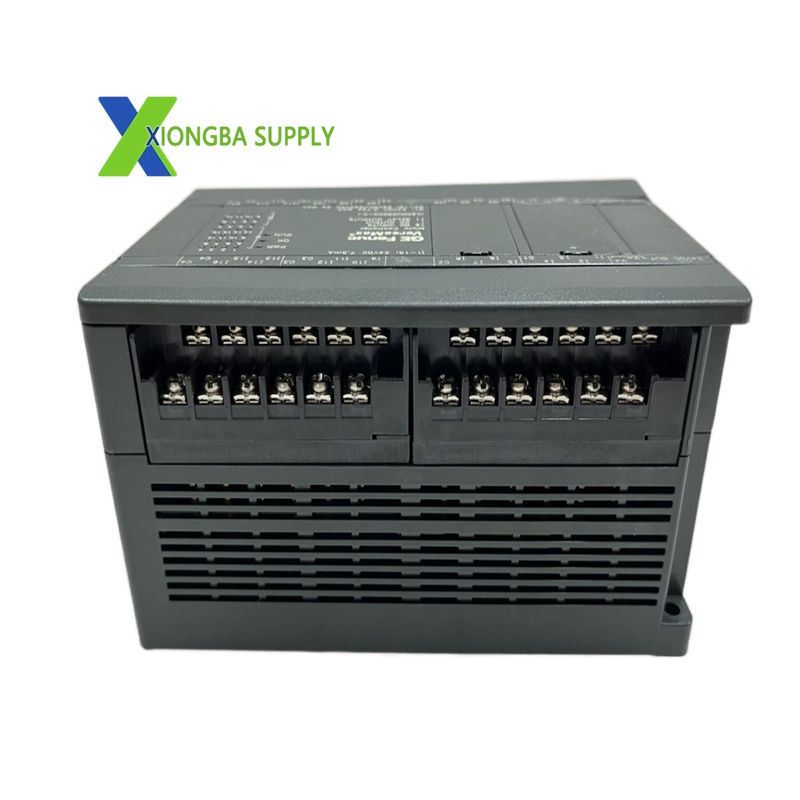

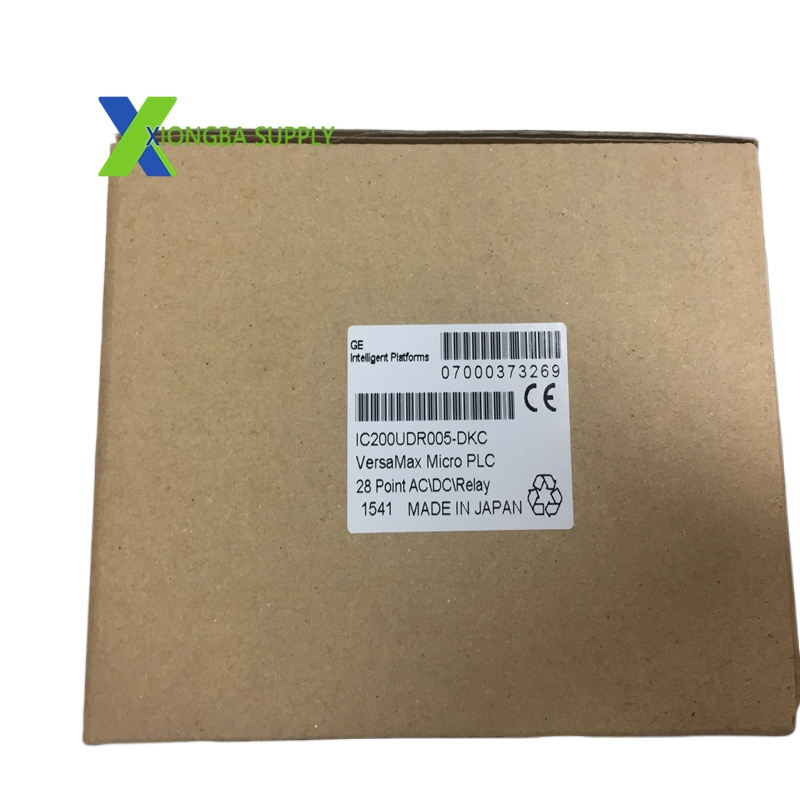

GE IC200UDR005 – VersaMax Micro 28-Point Programmable Logic Controller (PLC)

In stock

Product Introduction: The IC200UDR005, manufactured by General Electric (GE Fanuc / Emerson Automation), is a compact, high-performance micro PLC in the VersaMax Micro series. It integrates a CPU, power supply, digital I/O, and communication ports into a single, space-saving unit. Designed for small-scale standalone control and distributed automation systems, it executes real-time logic, processes sensor inputs, and drives actuators. Its modular expansion capability and robust feature set make it ideal for cost-effective, reliable control in diverse industrial environments.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200UDR005
Series: VersaMax Micro PLC System
I/O Configuration:
- Digital Inputs: 16 × 24VDC isolated inputs (sink/source configurable)
- Digital Outputs: 11 × Form A (SPST) relay outputs; 1 × 24VDC auxiliary output (200mA max)
Relay Output Rating: 2A @ 250VAC (resistive load)
Power Supply: 100–240VAC (50/60Hz), 26VA power consumption
Program Memory: 9K words (flash, non-volatile)
Data Memory: 2K words (retentive with battery backup)
Communication Ports:
- Port 1: RJ45 RS-232 (programming/debugging)
- Port 2: DB-15 RS-485 (Modbus RTU, HMI/SCADA connectivity)
Expansion Capacity: Supports up to 4 I/O expansion units (digital/analog)
Maximum I/O Points: 170 (with full expansion)
High-Speed Counters: 4 × 100kHz (input response: 100µs)
Real-Time Clock (RTC): Integrated for time-stamping and scheduling
Analog Potentiometers: 2 × on-board (for manual adjustment)
Isolation: 1500V RMS (field-to-logic); 500V RMS (group-to-group)
Dimensions (W×H×D): 150mm × 90mm × 76mm
Weight: 0.91kg (2.00lbs)
Operating Temperature: 0°C to +55°C (32°F to 131°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: UL, CE, CSA, Class I Div 2 (hazardous locations)
Protection Class: IP20
Mounting: 35mm DIN rail or panel mount

Key Features

Compact All-In-One Design: Integrates CPU, power supply, I/O, and communication in a small footprint for space-constrained cabinets.
Flexible I/O Mix: 16 DC inputs, 11 relay outputs, and 1 auxiliary DC output accommodate diverse sensor and actuator types.
Powerful Processing: 9K-word program memory, fast cycle times, and floating-point math support complex logic and calculations.
Extensible Architecture: Connect up to 4 expansion modules to scale I/O from 28 to 170 points for growing applications.
