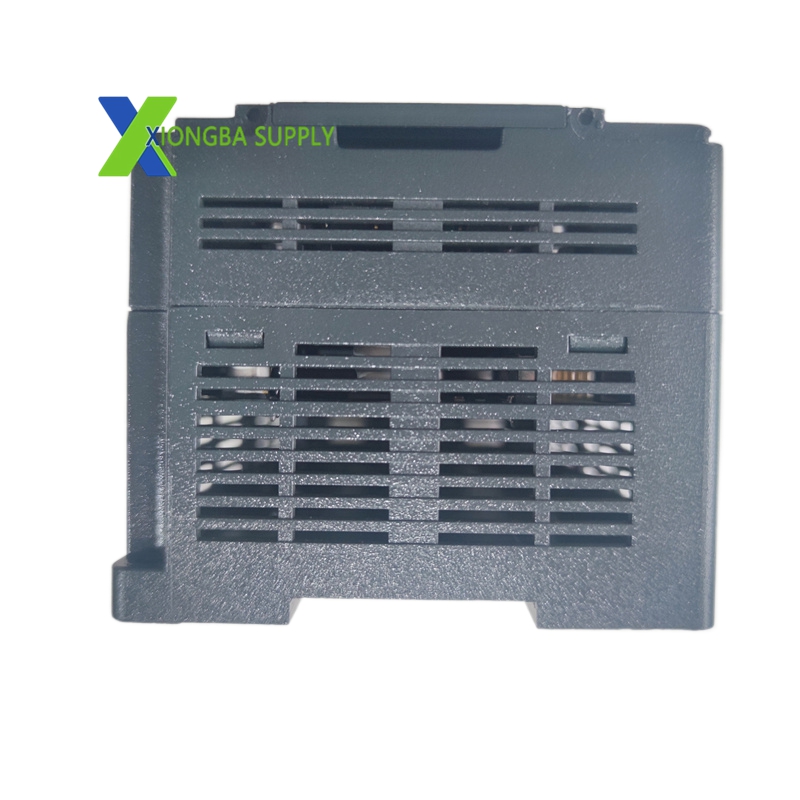

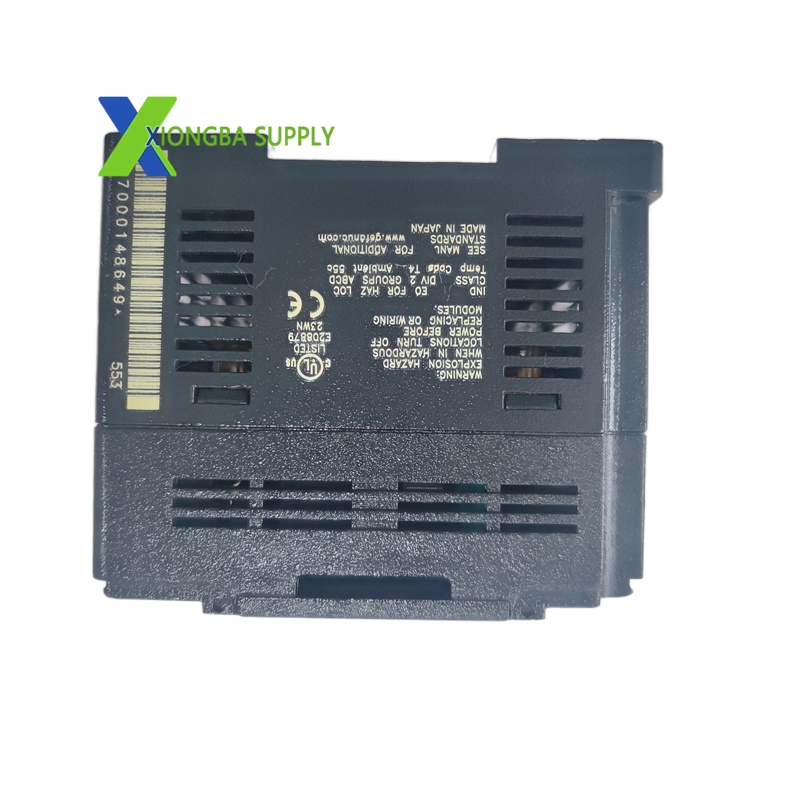

GE IC200UDR064 – VersaMax Micro 64-Point PLC (40×24VDC Inputs, 24×Relay Outputs)

In stock

Product Introduction

The IC200UDR064 is a compact, high-performance programmable logic controller (PLC) from the GE Fanuc / Emerson Automation VersaMax Micro family. Designed for small-to-medium industrial automation, it integrates 40 digital inputs, 24 relay outputs, an embedded 24VDC power supply, and a built-in communication port into a rugged, space-saving unit. It delivers fast processing, flexible I/O expansion, and robust real-time control for machine automation, process control, and distributed I/O applications in harsh industrial environments.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC200UDR064
Series: VersaMax Micro PLC
Total I/O Points: 64 (40 inputs + 24 outputs)
Digital Inputs: 40 × 24VDC (sinking/sourcing, 19.2–30VDC range)
Input Current: 4.5mA typical per input (at 24VDC)
Digital Outputs: 24 × relay (normally open, NO)
Output Rating: 2A @ 24VDC / 240VAC (resistive load)
Power Supply: Integrated 24VDC (19.2–30VDC input)
Backplane Current: 435mA maximum (combined input/external load)
Processor Speed: 0.5µs per basic instruction
Program Memory: 10KB user logic; 8KB data memory
Real-Time Clock (RTC): Embedded (time/date logging)
Communication Port: 1 × RJ-45 (Modbus RTU/ASCII, 9.6–115.2kbps)
Expansion Capacity: Up to 4 I/O modules (max 170 total I/O points)
Isolation: Inputs/outputs isolated (250VAC continuous, 1500VAC for 1 minute)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.53kg (1.17lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA, Class I Div 2 (hazardous areas)
Mounting: DIN rail or direct panel mount

Key Features

High-Density I/O Integration: 64 onboard I/O points (40DC in/24 relay out) eliminate need for base I/O modules, reducing system cost and cabinet space.
Relay Output Versatility: 2A relay outputs handle both AC and DC loads (motors, valves, contactors) with no additional relays, ideal for inductive/resistive loads.
Fast Processing & Logic Control: 0.5µs instruction speed ensures rapid response for high-speed machine sequencing and real-time process regulation.
Flexible Expansion: Connect up to 4 VersaMax I/O modules (analog, digital, specialty) to scale to 170 I/O points for growing applications.
Embedded Communication: Built-in Modbus RTU/ASCII port enables direct connection to HMIs, SCADA, and other PLCs without extra communication modules.
