Technical Specifications:

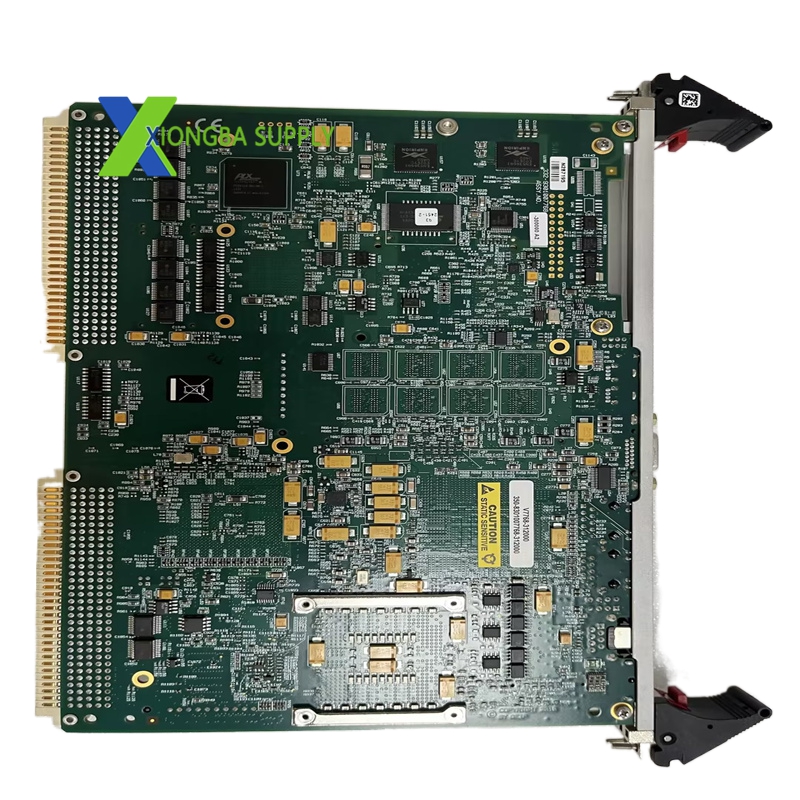

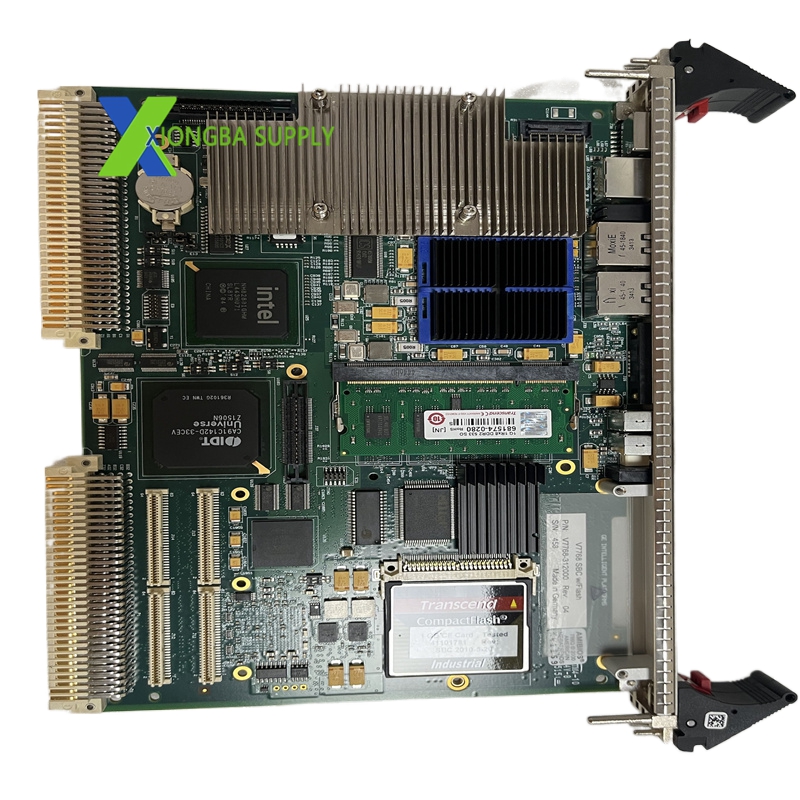

Platform: GE Fanuc Series 90-70 VMEbus SBC
Processor: 32-bit RISC or CISC processor (typically Motorola 68040 or PowerPC)
Clock Speed: 33 MHz to 66 MHz (depending on revision)
RAM: 32MB to 128MB SDRAM
Flash Memory: 8MB to 32MB for program and data storage
VMEbus Interface: VME64 or VME64x compliant
Ethernet: 10/100Base-T Ethernet port for network connectivity
Serial Ports: 2 RS-232/RS-485 serial ports
User I/O: 32 to 64 digital I/O points on the SBC itself
Watchdog Timer: Hardware watchdog with 100ms timeout
Operating System: VxWorks or proprietary GE Fanuc RTOS
Form Factor: 6U VME Eurocard (Single Board Computer)
Functional Features:
High-Speed Processing: Executes logic programs at speeds exceeding 10,000 instructions per microsecond.
VMEbus Master/Slave: Can act as a bus master for DMA transfers or as a slave for other VME modules.
Embedded Web Server: Built-in HTTP server for remote diagnostics and monitoring via web browser.
Remote Programming: Supports programming and debugging via Ethernet or serial connection from a remote workstation.
Redundancy Support: Can be paired with an identical module for hot-standby redundant operation.
Battery-Backed RAM: Maintains program and data during power interruptions for quick restart.
Application Scenarios:
Machine Control: Serves as the main controller for packaging machines, printing presses, and material handling systems.
Process Control: Manages continuous process variables in chemical plants, refineries, and water treatment facilities.
Test and Measurement: Used in automated test equipment (ATE) for electronics manufacturing.
Defense and Aerospace: Deployed in radar systems, missile guidance, and avionics due to VMEbus ruggedness.
