Product Introduction:

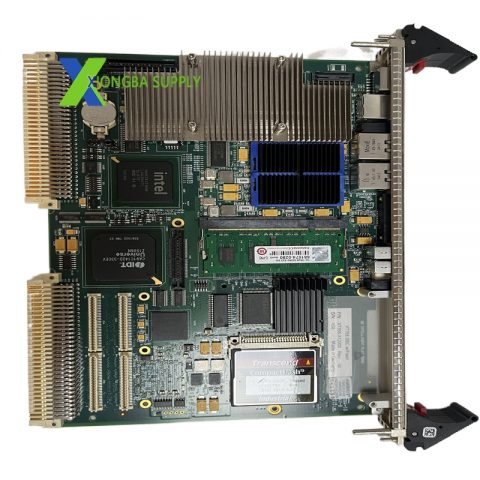

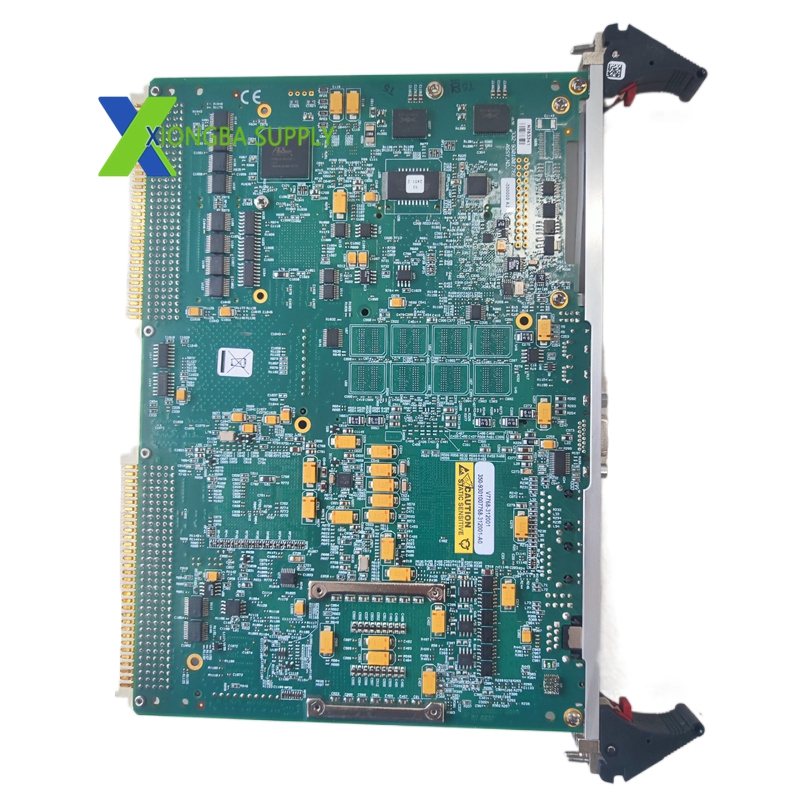

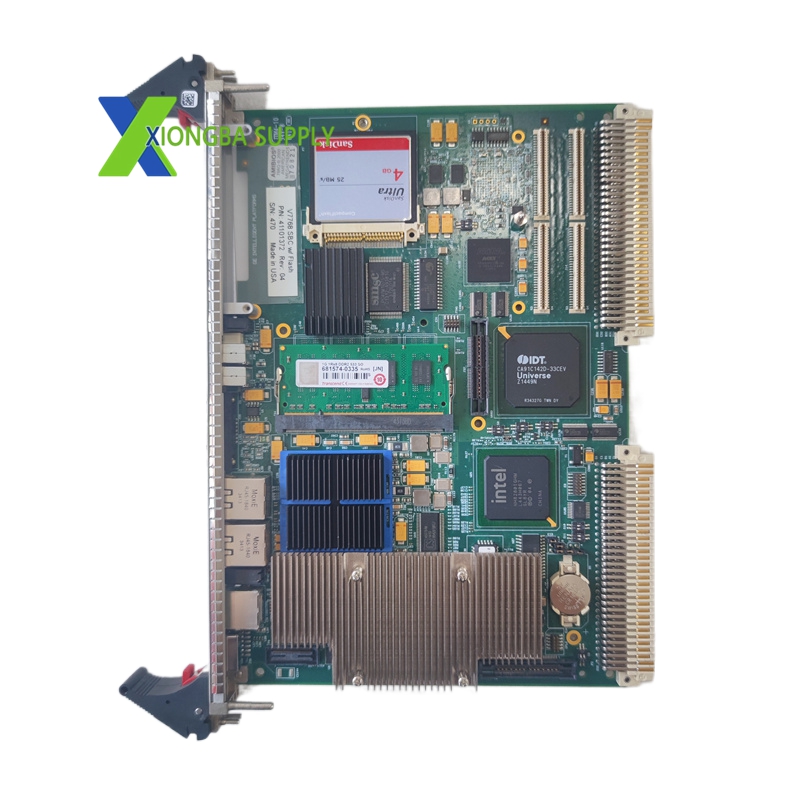

The V7768-312001 is the first major revision (01) of the V7768-312000 SBC processor module, with the A0 suffix indicating a specific configuration variant. The “01” revision introduces significant improvements over the base “00” version, including a faster processor, more memory, enhanced Ethernet capabilities, and improved power management. The “A0” variant typically denotes a configuration with specific I/O options or a particular flash memory size tailored for a specific application. This module is the upgraded replacement for the 312000 in systems requiring higher performance or longer product lifecycle support.

Technical Specifications:
Platform: GE Fanuc Series 90-70 VMEbus SBC (Revision 01, A0)
Processor: 66 MHz to 100 MHz PowerPC or enhanced 68040
RAM: 64MB to 256MB SDRAM (double the base 00 revision)
Flash Memory: 16MB to 64MB
Ethernet: 10/100/1000Base-T Gigabit Ethernet (upgraded from 10/100 in 00)
Serial Ports: 4 RS-232/RS-485 ports (doubled from 2 in 00)
User I/O: 64 to 128 digital I/O points
VMEbus: VME64x with 2eSST or 2eSST broadcast support
Power Consumption: 15 Watts (optimized from 20 Watts in 00)
Operating Temperature: 0 to 60 degrees Celsius (extended to -20 to +70 in T variant)
Form Factor: 6U VME Eurocard

Functional Features:
Double the Memory: Twice the RAM and flash of the 00 revision, allowing larger programs and more data logging.
Gigabit Ethernet: Supports high-speed data transfer for historian connections and remote programming.
More Serial Ports: Four serial ports enable connection to more legacy devices without additional modules.
Improved Power Efficiency: Lower power consumption reduces heat generation and extends component life.
Enhanced Diagnostics: More detailed self-test routines and fault reporting compared to the 00 revision.
Longer Lifecycle: The 01 revision is supported with firmware updates for a longer period than the 00.

Application Scenarios:
Large Machine Control: Handles complex motion control and sequencing for large packaging or printing lines.
Data-Intensive Applications: The extra memory supports extensive data logging and trending for process optimization.
Networked Plants: The Gigabit Ethernet enables high-speed connection to plant-wide historians and MES systems.
Legacy Integration: The four serial ports allow direct connection to multiple older devices (PLCs, RTUs, meters) simultaneously.
