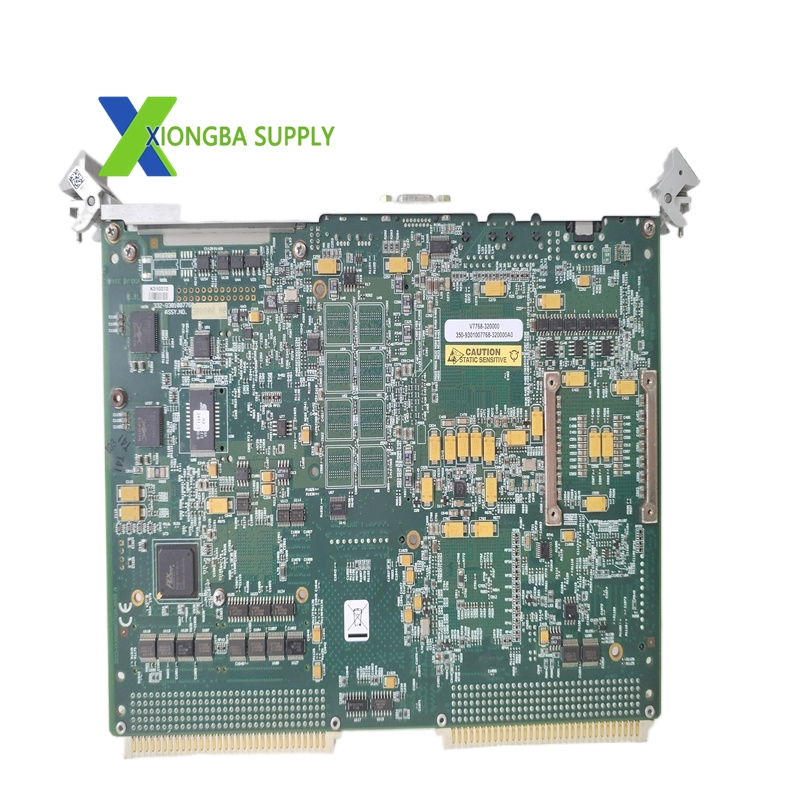

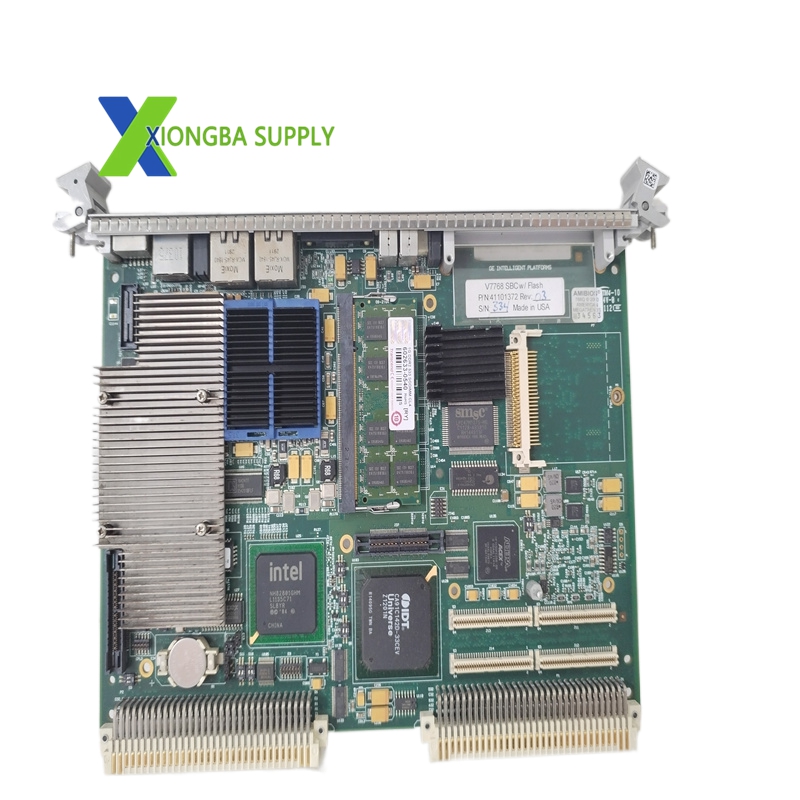

Product Name: GE V7768-320000 - VMEbus High-Performance Single Board Computer for Series 90-70 Systems

Product Name: GE V7768-320000 – VMEbus High-Performance Single Board Computer for Series 90-70 Systems

In stock

Product Introduction:
The V7768-320000 is a high-performance variant of the V7768 SBC family, positioned above the 312000 series in terms of processing power and I/O capacity. The “320000” designation indicates a more powerful processor, larger memory, and more extensive I/O capabilities than the 312000. This base revision (00) is the original configuration of this high-performance module. It is designed for applications that demand faster scan times, larger program sizes, and more simultaneous communications channels than the standard 312000 can provide.

Technical Specifications:
Platform: GE Fanuc Series 90-70 VMEbus SBC (High-Performance)
Processor: 100 MHz to 133 MHz PowerPC G3 or equivalent
RAM: 128MB to 512MB SDRAM
Flash Memory: 32MB to 128MB
Ethernet: 10/100Base-T + 100Base-FX (Fiber Optic)
Serial Ports: 4 RS-232/RS-485 + 1 RS-422
User I/O: 128 digital I/O points
VMEbus: VME64x with DMA support
Additional Ports: USB 2.0 port for local programming and data transfer
Watchdog: Dual watchdog timers (system and application)
Form Factor: 6U VME Eurocard

Functional Features:
High-Speed Scanning: Sub-millisecond scan times for time-critical control loops.
Large Program Capacity: 512MB RAM allows extremely complex programs with thousands of routines.
Fiber Optic Ethernet: The 100Base-FX port provides noise-immune, long-distance network connectivity.
USB Port: Allows local programming and data download without a serial cable.
Dual Watchdogs: Separate watchdogs for the operating system and the application program ensure maximum reliability.
Hot-Swappable: Can be replaced in a running system when used in a redundant pair.

Application Scenarios:
High-Speed Packaging: Controls high-speed bottle filling, capping, and labeling lines requiring microsecond-level timing.
Large Process Plants: Manages entire process units (distillation columns, reactors) from a single SBC.
Power Plant Auxiliaries: Controls boiler feedwater, condenser, and cooling water systems with fast response requirements.
Research and Testing: Used in high-speed data acquisition and automated test systems.
