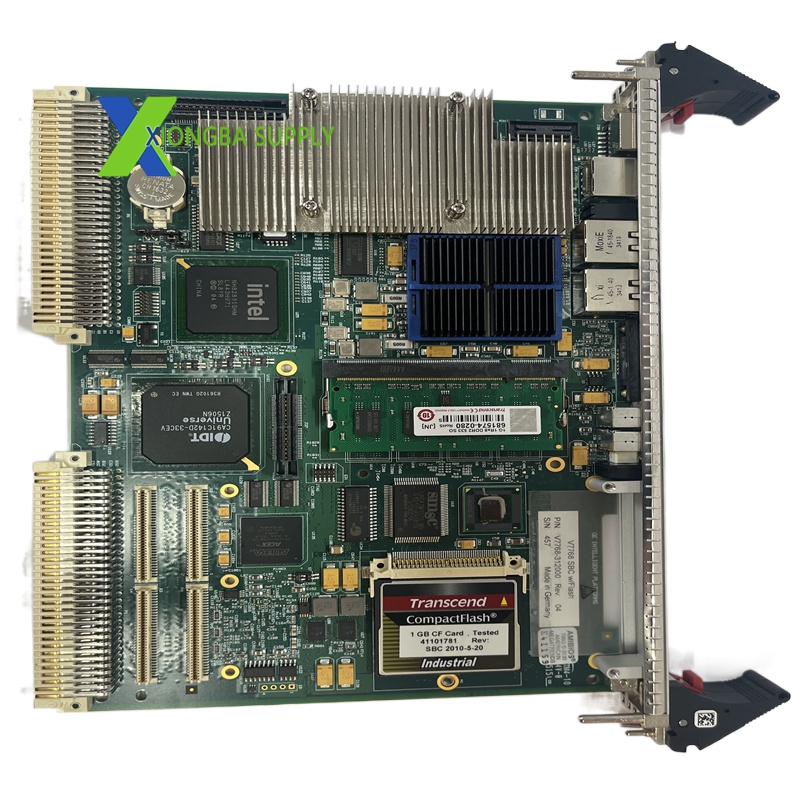

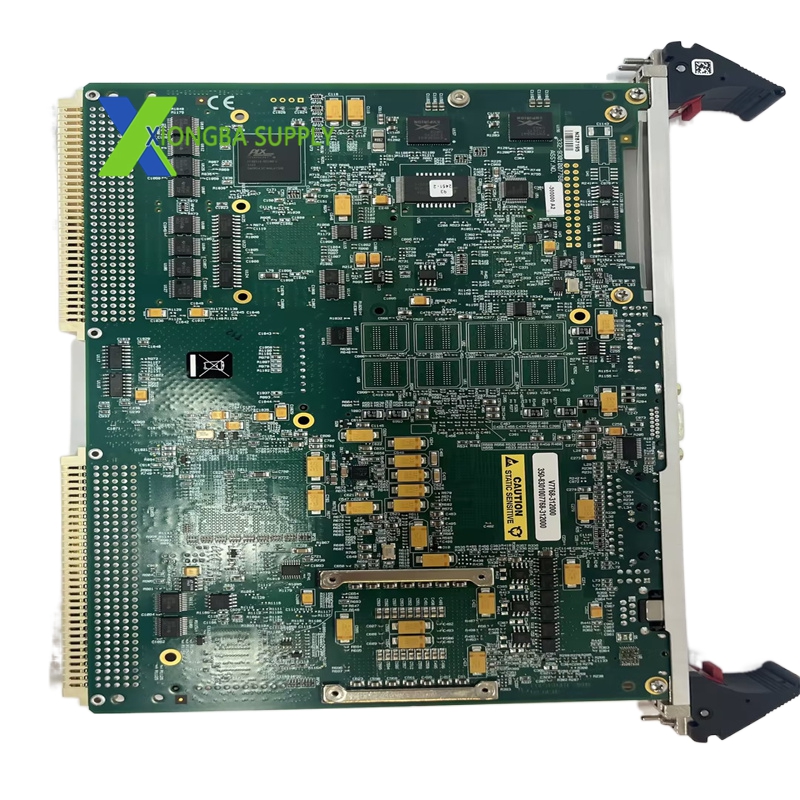

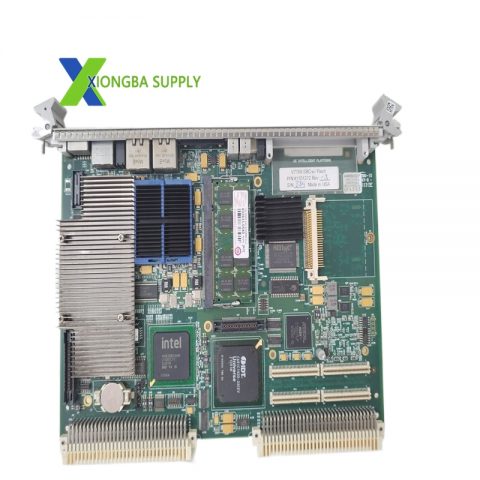

GE V7768-320001 - VMEbus High-Performance SBC Processor Module

GE V7768-320001 – VMEbus High-Performance SBC Processor Module

In stock

Product Introduction:
The V7768-320001 is the revision 01, A2 variant of the high-performance V7768-320000 module. The “01” revision brings processor speed increases, memory expansion, and improved network capabilities. The “A2” variant is a specific configuration that typically includes enhanced analog I/O, additional communication protocols, or a specific memory map tailored for a particular OEM application. This is the latest supported revision of the 320000 series, offering the best performance and longest lifecycle support within this product family.

Technical Specifications:
Platform: GE Fanuc Series 90-70 VMEbus SBC (Revision 01, A2)
Processor: 133 MHz to 166 MHz PowerPC G3
RAM: 256MB to 1GB SDRAM
Flash Memory: 64MB to 256MB
Ethernet: 10/100/1000Base-T Gigabit + 100Base-FX Fiber
Serial Ports: 6 RS-232/RS-485 + 2 RS-422
User I/O: 128 digital + 16 analog (4-20mA) inputs
VMEbus: VME64x with 2eSST320 broadcast
USB: USB 2.0 + USB 1.1
Power: 20 Watts (optimized thermal design)
Form Factor: 6U VME Eurocard

Functional Features:
Gigabit Ethernet + Fiber: Dual high-speed network interfaces for redundant plant connectivity.
Analog I/O on Board: 16 analog inputs eliminate the need for a separate analog module for many applications.
1GB RAM: Supports the largest and most complex control programs in the Series 90-70 family.
Six Serial Ports: Connects to a wide variety of field devices, meters, and legacy PLCs simultaneously.
Enhanced Diagnostics: A2 variant includes advanced self-test and memory scrubbing for maximum uptime.
Extended Temperature Support: Available in T-rated variant for operation up to 70 degrees Celsius.

Application Scenarios:
Enterprise-Level Control: Serves as the main controller for entire plant sections in large refineries or power plants.
Complex Motion Control: Manages multi-axis servo drives and robots with sub-millisecond coordination.
Redundant Plant Networks: The dual Gigabit/Fiber ports support PRP or HSR redundant network topologies.
OEM Machines: The A2 configuration is often specified by OEMs for their high-end packaging, printing, or semiconductor equipment.
