Technical Specifications:

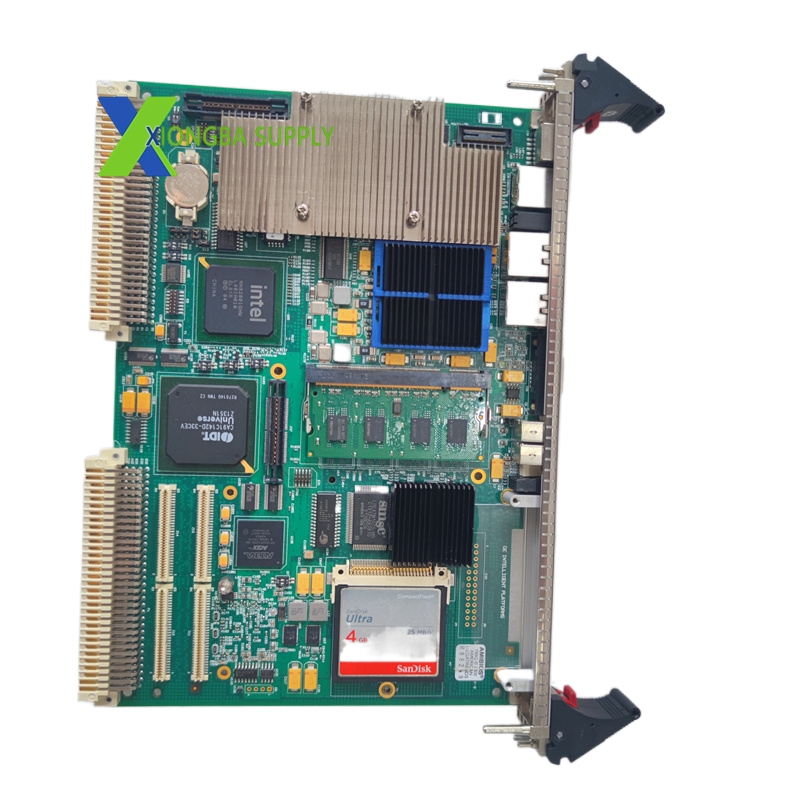

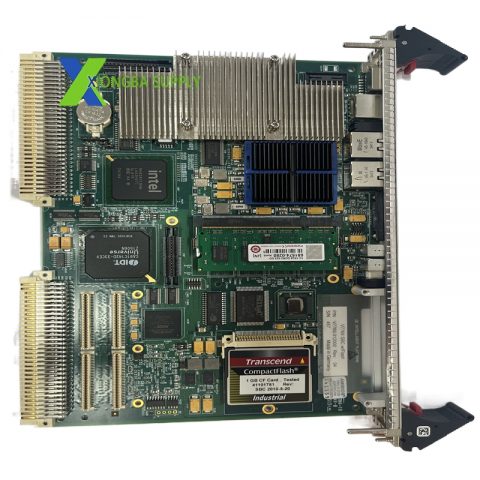

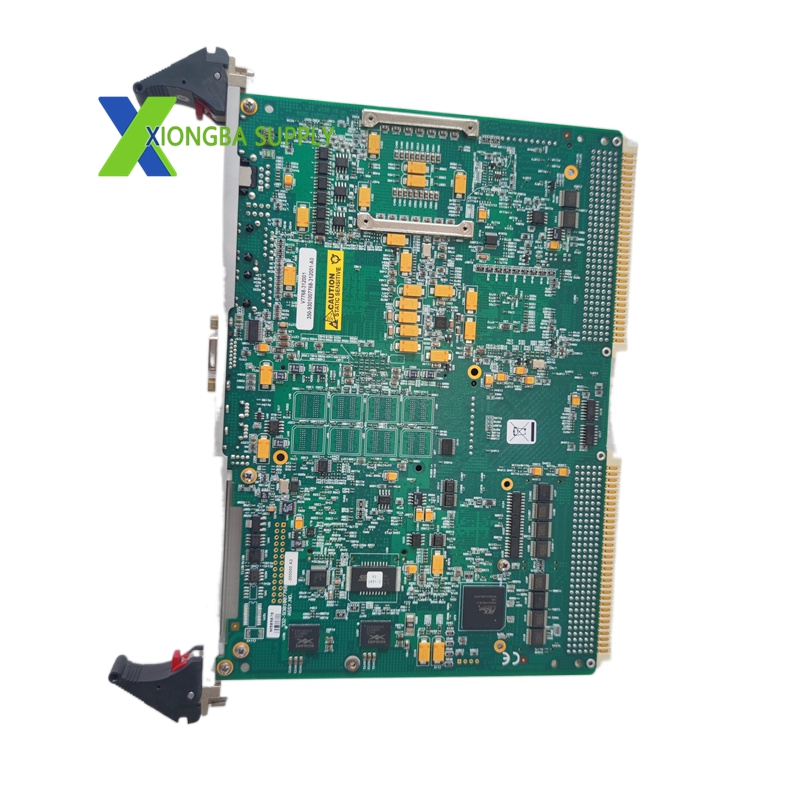

Platform: GE Fanuc Series 90-70 VMEbus SBC (Extended I/O)
Processor: 100 MHz PowerPC G3
RAM: 128MB SDRAM
Flash Memory: 32MB
Digital I/O: 256 points (128 input / 128 output)
Analog I/O: 32 channels (16-bit resolution, 4-20mA or 0-10V)
Ethernet: 10/100Base-T
Serial Ports: 4 RS-232/RS-485
VMEbus: VME64x
Isolation: 1500V RMS channel-to-ground
Form Factor: 6U VME Eurocard
Functional Features:
256 Digital I/O Points: Eliminates the need for multiple I/O racks in many applications.
32 Analog Channels: Direct connection to dozens of temperature, pressure, and flow transmitters.
On-Board Signal Conditioning: Built-in cold junction compensation for thermocouples and bridge completion for RTDs.
Per-Channel Diagnostics: Each I/O channel reports its own health status (open, short, out-of-range).
Hot-Swappable I/O: I/O modules can be replaced while the system is running.
Compact Design: High I/O density in a single 6U slot saves rack space.
Application Scenarios:
Large Distributed I/O: Manages all I/O for a single process unit (e.g., a distillation column) from one module.
Retrofit Projects: Replaces multiple older I/O racks with a single modern SBC with built-in I/O.
Water and Wastewater: Monitors and controls dozens of pumps, valves, and sensors in treatment plants.
Manufacturing Lines: Serves as the main I/O controller for large production lines with hundreds of field devices.
