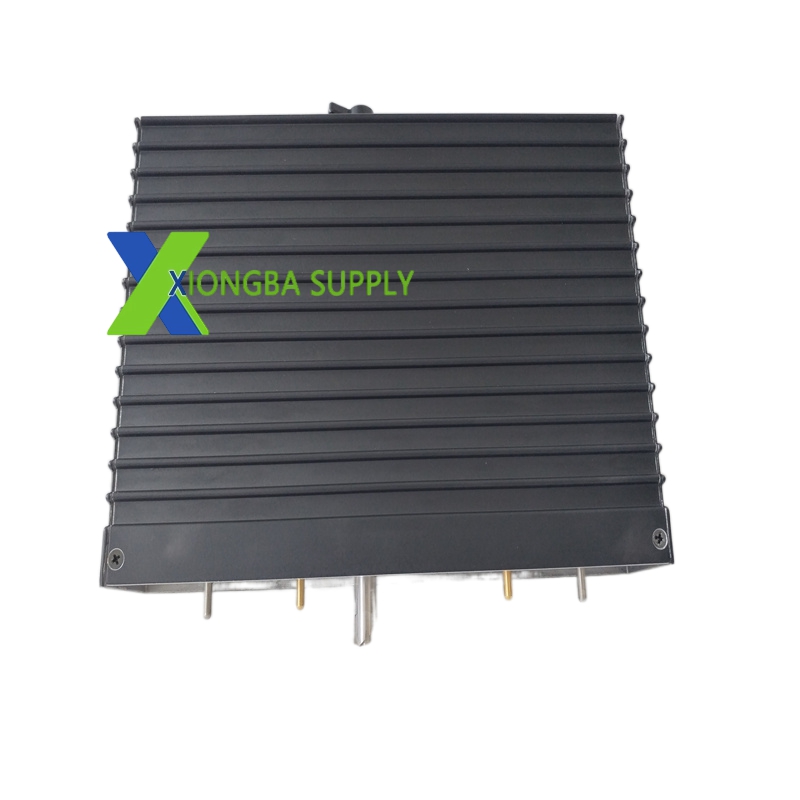

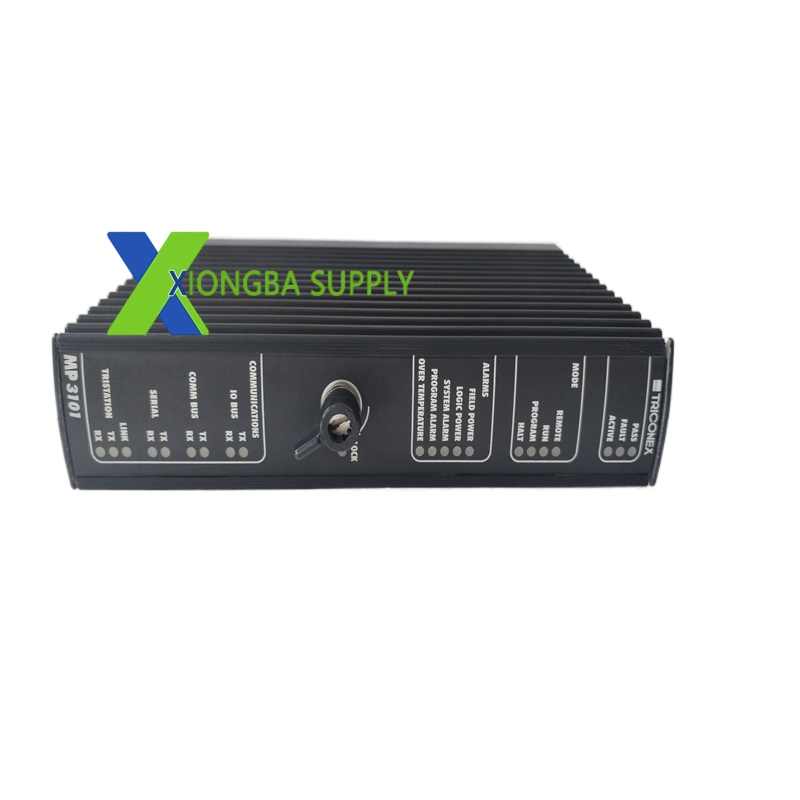

Honeywell Triconex 3101 - 8-Channel Analog Output Module (Series 1)

Honeywell Triconex 3101 – 8-Channel Analog Output Module (Series 1)

In stock

Product Introduction:
The Triconex 3101 is an 8-channel analog output module that converts digital values from the Triconex processor into precise analog signals for controlling field devices. The “3101” designation identifies it as an analog output module in the Series 1 family. This module provides 8 independent output channels, each capable of generating a 4-20mA current signal or a 1-5V voltage signal. These outputs drive devices such as control valve positioners, variable speed drives, damper actuators, and setpoint transmitters. The module is safety-rated, meaning all outputs default to a safe state (typically 4mA for fail-closed valves or 0V for fail-closed dampers) upon loss of communication with the processor.

Technical Specifications:
Module Type: 8-Channel Analog Output Module
Series: Series 1
Channels: 8 independent analog output channels
Output Types: 4-20mA or 1-5V (software selectable per channel)
Resolution: 16-bit D/A conversion
**Accuracy/- 0.1% of full scale
Update Rate: 100ms simultaneous update for all 8 channels
Isolation: 500V RMS channel-to-channel and channel-to-ground
Load Capacity: 500 Ohms maximum for voltage outputs, 600 Ohms maximum for current outputs
Diagnostics: Per-channel output monitoring, open circuit detection, short circuit detection
Power: 5V DC from backplane + isolated field power for output drivers
Form Factor: 3U Triconex Eurocard
Operating Temperature: 0 to 60 degrees Celsius

Functional Features:
Simultaneous Update: All 8 outputs update at the exact same instant, critical for multi-valve control where timing must be synchronized.
Per-Channel Isolation: Each output is electrically isolated from every other output, preventing ground loops.
Fail-Safe Defaults: Configurable to output 4mA (valve closed), 20mA (valve open), or hold last value on communication loss.
LED Indicators: Per-channel LEDs show output status (green for active, red for fault) at a glance.
Burnout Detection: Detects open or shorted field wiring on every channel and alarms the CPU.
Current Sourcing/Sinking: Supports both 2-wire (loop-powered) and 4-wire (externally powered) transmitters.

Application Scenarios:
Control Valve Positioning: Drives the positioner of fuel control valves, steam control valves, and feedwater valves.
Damper Actuation: Controls air dampers in combustion systems and HVAC applications.
Setpoint Distribution: Sends analog setpoints to remote controllers or variable speed drives.
Annunciator Drivers: Drives current-loop annunciator panels for alarm indication in the control room.
