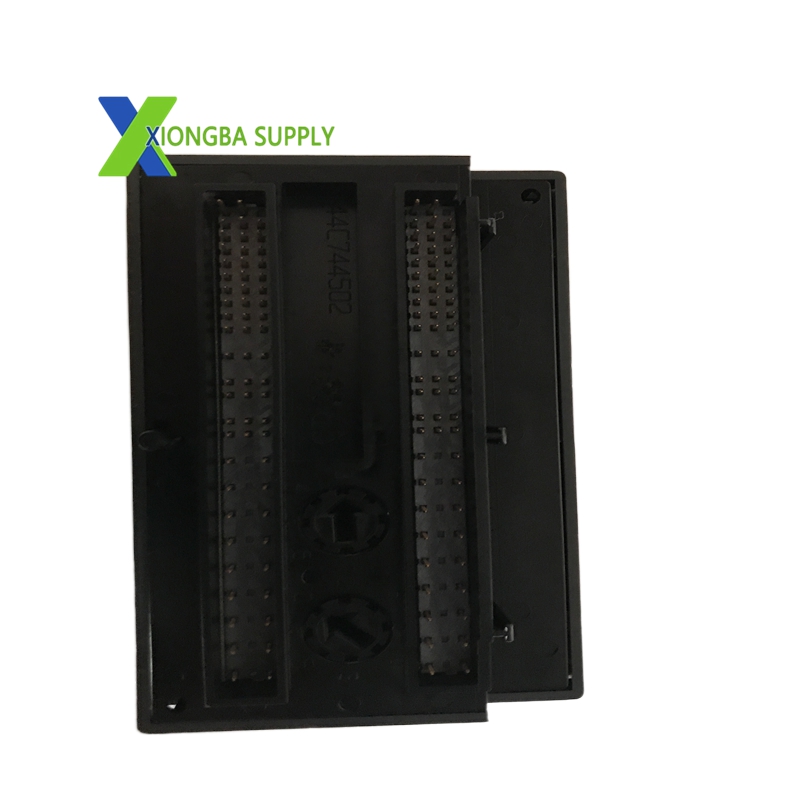

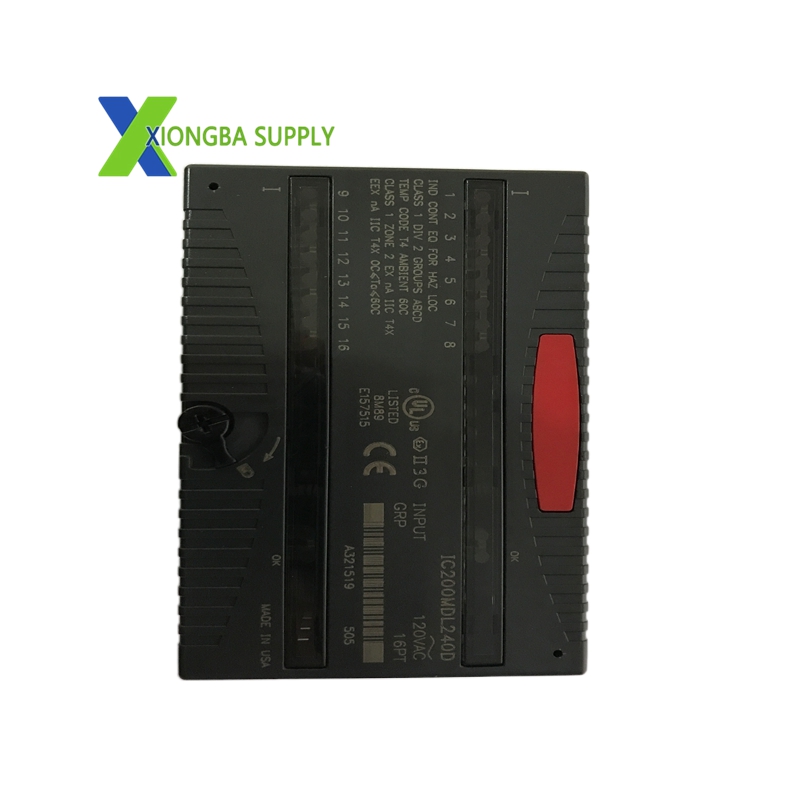

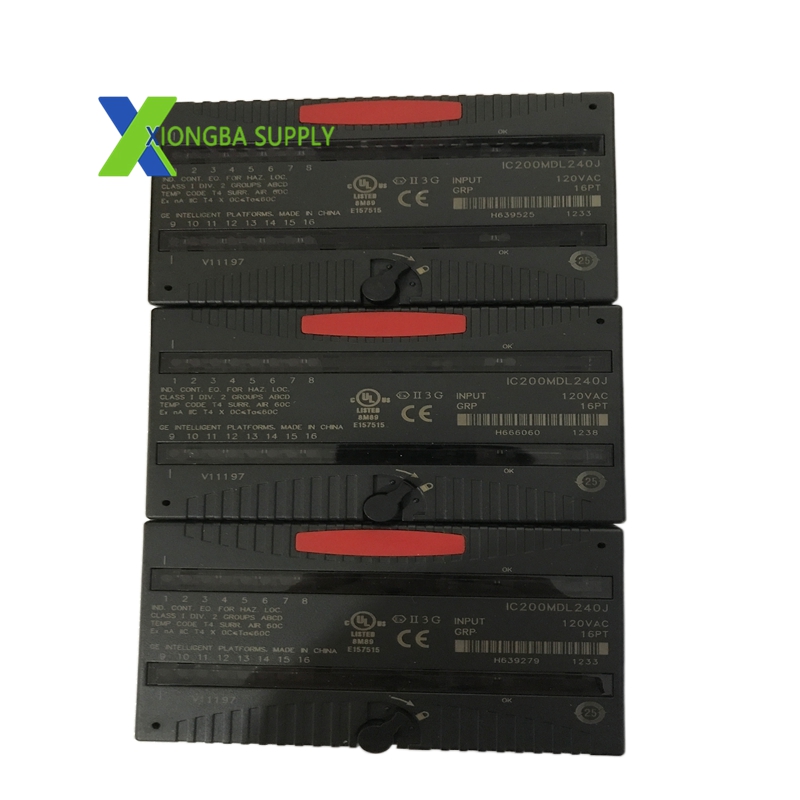

GE IC200MDL240B VersaMax 16-Point Discrete AC Input Module

Technical Specifications

• Manufacturer: GE Fanuc / Emerson Automation
• Model: IC200MDL240B
• Series: VersaMax I/O Series
• Module Type: Discrete AC Input Module
• Input Channels: 16 points (2 groups × 8 channels)
• Nominal Input Voltage: 120 VAC
• Operating Voltage Range: 0–132 VAC
• Frequency Range: 47–63 Hz
• On-State Voltage: 70–132 VAC
• Off-State Voltage: 0–40 VAC
• Minimum On-State Current: 7 mA per channel
• Maximum Off-State Current: 1.5 mA per channel
• Backplane Power: 5 VDC, 110 mA (max)
• Isolation Rating:
  • Group-to-Group: 250 VAC continuous; 1500 VAC for 1 minute
  • Input-to-Logic: 1500 VAC for 1 minute
• Response Time:
  • On: 1 cycle (minimum)
  • Off: 2 ms (minimum)
• Dimensions (W×H×D): 89 × 51 × 127 mm (3.5 × 2.0 × 5.0 in)
• Weight: 0.17 kg (0.38 lbs)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (non-condensing)
• Mounting: DIN rail (horizontal/vertical)
• Hot Swapping: Supported

Key Features

1. High-Density 16-Point AC Input
   • Provides 16 discrete input channels to monitor a large number of field devices, reducing system cost and saving rack space.
   • Accepts standard 120 VAC signals common in industrial control panels and machinery.
2. Dual-Group Electrical Isolation
   • Channels divided into two groups with 1500 VAC isolation between them, minimizing cross-group electrical interference and improving safety.
   • Optical isolation between field inputs and internal logic protects the PLC from voltage spikes and ground loops.
3. Fast & Reliable Signal Response
   • Delivers 1-cycle On and 2-ms Off response times for accurate, real-time status tracking of sensors and switches.
   • Strict on/off voltage thresholds (70–132 VAC On; 0–40 VAC Off) ensure noise immunity and prevent false triggering.
4. Hot-Swappable & Tool-Less Installation
   • Supports hot swapping for replacement without shutting down the PLC system, reducing maintenance downtime.
   • Snap-in DIN rail mounting enables quick, tool-less installation in either horizontal or vertical orientation.
5. Robust Industrial-Grade Design
   • Built to withstand wide temperature fluctuations and high electrical noise in factories, process plants, and harsh environments.
   • LED status indicators (per group/module) allow immediate visual diagnostics of power, channel status, and faults.

Application Scenarios

• Factory Automation & Discrete Manufacturing
  • Assembly Lines: Monitor limit switches, proximity sensors, and pushbuttons for conveyor, robotic, and machine tool control.
  • Packaging Machinery: Track door interlocks, photoeyes, and safety switches in packaging and material-handling equipment.
• Process Industries
  • Water/Wastewater Treatment: Detect pump status, valve positions, and level switches in treatment facilities.
  • Chemical & Petrochemical Plants: Monitor alarm contacts, pressure switches, and flow sensors in hazardous areas.
• Building & Infrastructure
  • HVAC Systems: Monitor damper positions, filter status, and fan interlocks in commercial and industrial buildings.
  • Elevator & Escalator Control: Collect safety circuit and door switch status for vertical transportation systems.
• Energy & Power
  • Power Distribution: Monitor breaker status, relay contacts, and emergency stop signals in substations and power plants.
  • Renewable Energy: Track wind turbine and solar inverter auxiliary contacts and fault signals。
