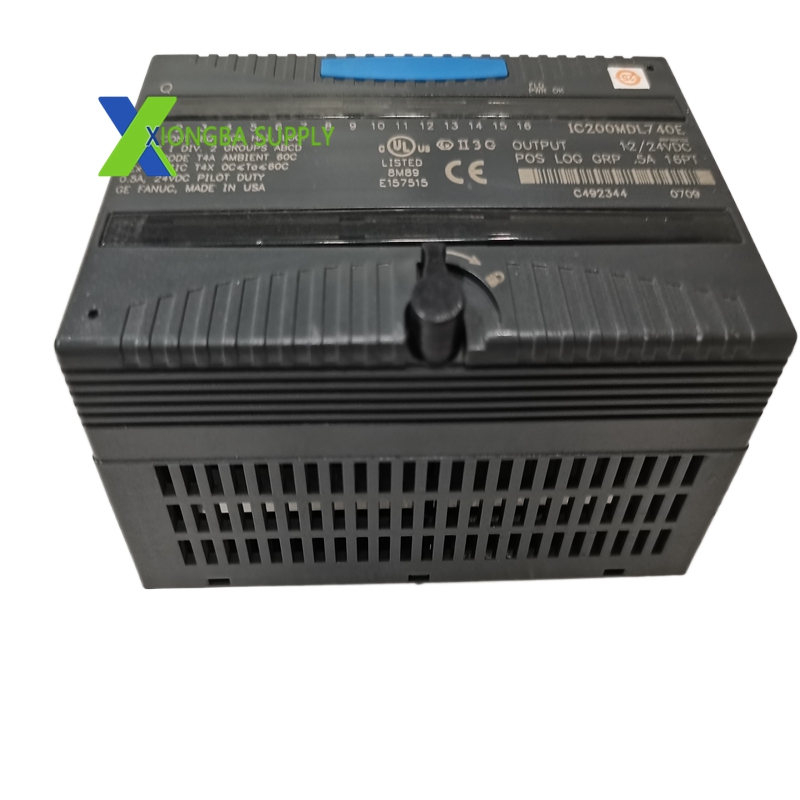

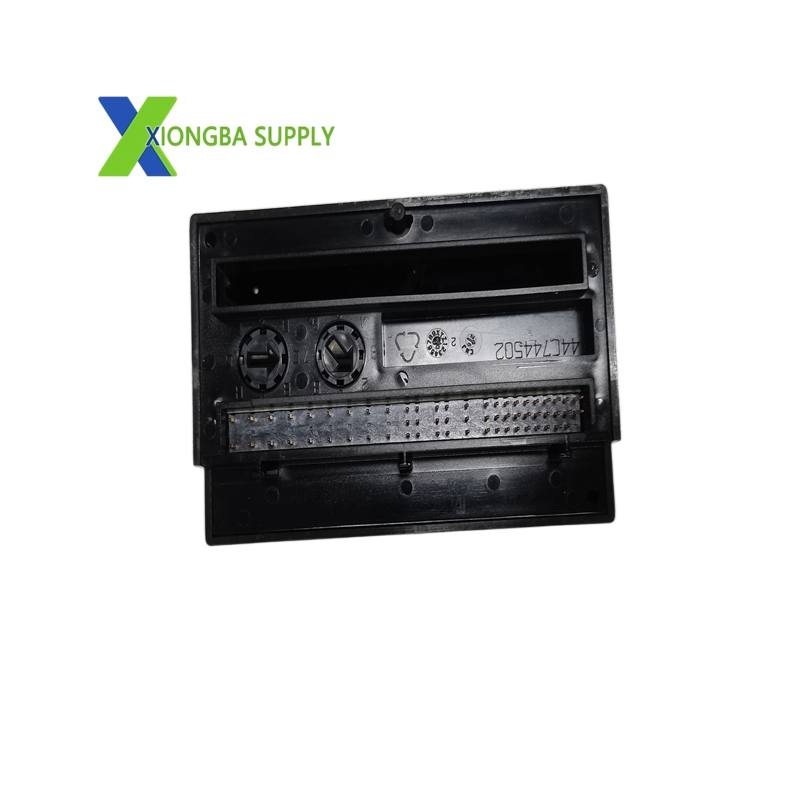

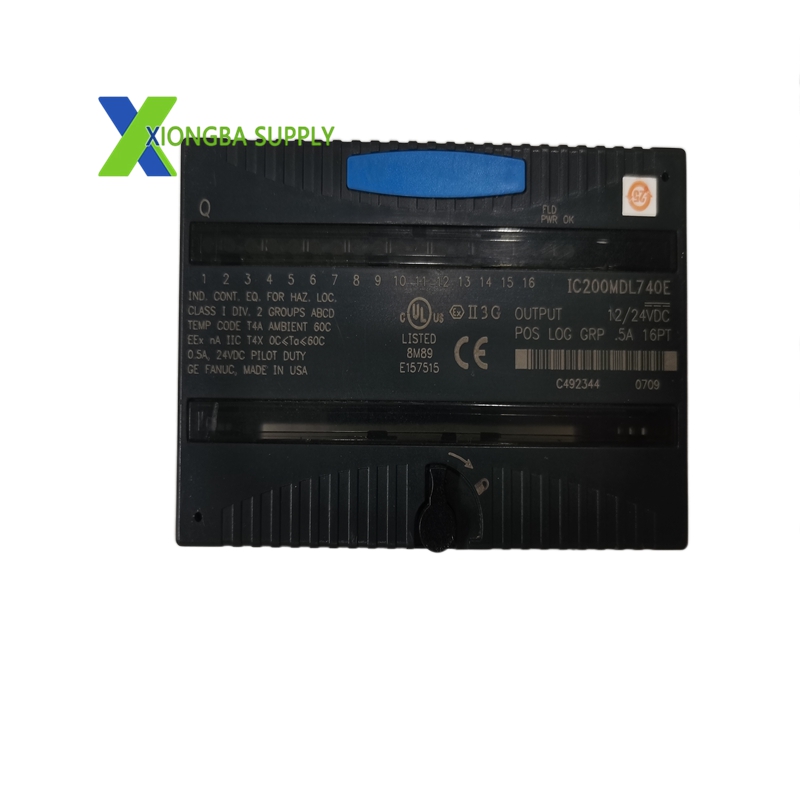

GE IC200MDL740E VersaMax 16‑Point Discrete Output Module

Technical Specifications

• Manufacturer: GE Fanuc (GE Automation & Controls)
• Model: IC200MDL740E
• Series: VersaMax PLC
• Module Type: Discrete Output (Solid‑State Sourcing)
• Number of Outputs: 16 points (1 group)
• Nominal Output Voltage: 12 VDC / 24 VDC
• Operating Voltage Range: 10.2 VDC to 30 VDC
• Output Current: 0.5 A per point (max)
• Response Time: ON = 0.2 ms; OFF = 1.0 ms
• Backplane Power Consumption: 45 mA @ 5 VDC
• Isolation: Group‑to‑backplane (2500 VDC); no point‑to‑point isolation
• LED Indicators: 16 channel status LEDs; “OK” (module health); “FLD PWR” (field power)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +85°C
• Relative Humidity: 5%–95% (non‑condensing)
• Dimensions (W×H×D): 70 mm × 100 mm × 14 mm
• Weight: Approx. 0.32 kg
• Termination: Removable 20‑pin screw terminal block

Key Features

1. High‑Density 16‑Point Output
   • Delivers 16 independent sourcing outputs in a compact footprint, optimizing rack space.
   • Supports both 12 VDC and 24 VDC nominal voltages for flexible device compatibility.
2. Fast Solid‑State Switching
   • Provides sub‑millisecond response times (0.2 ms ON / 1.0 ms OFF) for precise, high‑speed control.
   • Solid‑state design eliminates mechanical wear, ensuring long operational life.
3. Enhanced Electrical Protection & Diagnostics
   • Equipped with electronic short‑circuit protection (ESCP) and overcurrent protection per channel.
   • Features dedicated LEDs for immediate visual status of each output, module health, and field power.
4. Robust & Serviceable Design
   • “E” revision includes a reinforced latching mechanism for secure seating in high‑vibration environments.
   • Supports hot‑swap insertion and removal without disrupting system power or field wiring.
5. Seamless VersaMax PLC Integration
   • Plugs directly into any VersaMax I/O rack via the backplane, requiring no additional adapters.
   • Fully compatible with GE Fanuc programming software for simple configuration, monitoring, and troubleshooting.

Application Scenarios

• Factory Automation & Discrete Manufacturing
  • Conveyor Systems: Controls DC motor starters, solenoid brakes, and photoeye triggers.
  • Packaging Machinery: Drives sealing valves, pneumatic actuators, and indicator lamps.
• Process & Infrastructure Control
  • Water/Wastewater Treatment: Operates 24 VDC solenoid valves, level alarms, and pump interlocks.
  • HVAC & Building Automation: Controls dampers, fan relays, and lighting contactors.
• Material Handling & Logistics
  • Warehouse Automation: Activates motor‑driven rollers, gate locks, and safety barriers.
  • Automotive Assembly: Triggers fixtures, clamps, and tool changers in robotic cells.
• General Industrial Machinery
  • Machine Tools: Controls coolant pumps, lubrication systems, and door interlocks.
  • Food & Beverage: Drives low‑voltage actuators, valves, and status beacons in washdown‑safe areas.
